Technical details
Supported connectors |
RJ-45, RJ-11 |
Display type |
LCD |

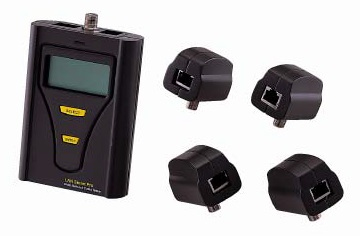

LANsmart Pro, RJ-11/RJ-45, 1.2 - 300 m, LCD (128x64 px), 4x AAA
The Hobbes LANsmart Pro version is the next generation of LANsmart TDR – the most popular and versatile cable tester for technicians on the market. It has all the same great functions as the original LANsmart (hand-held size, cable length meter, port-finder, etc) but it now also tests not only for LAN cables but also for telephone and coaxial cables. The Hobbes LANsmart Pro also incorporates both digital & analog tone generators and remote identifier functions.
The Hobbes LANsmart Pro displays cable map results in a pin-to-pin format and shows all cable faults including split pairs. It provides a great degree of accuracy when measuring cable length and locating problems from either end of a cable.
- All-in-one tester: wire map, twisted mapping, short location, quick test, cable length test, tone generator and port finder.
- Wire map for opened, short, reversed, crossed, split pairs, mis-wire and shield continuity.
- Wire map results are displayed in pin-to-pin format
- Indicates the ID # of the remote identification
- Short Location: locates short position whether short is in the near end or far end of the cable
- Measures twisted pairs, map, and length of Cat5, Cat5E and Cat6 cables without remotes
- Measures 2/4/6 pins telephone cable length and faults
- Measures coax cables length and faults
- Self-calibrating function allows for increased measuring accuracy when testing length of non-standard cables.
- Displays measurements in both meters and ft.
- Quick Test function: memorizes a cable’s pin out.
- Port Finder function: locates corresponding socket on hub/switch
- With LCD and beeper indicator
- RJ45/ RJ11 port protection from damage due to high voltage from telephone line
- Low battery indicator
