Technical details
| Supported connectors |
RJ-45 |
| Display type |
LCD |

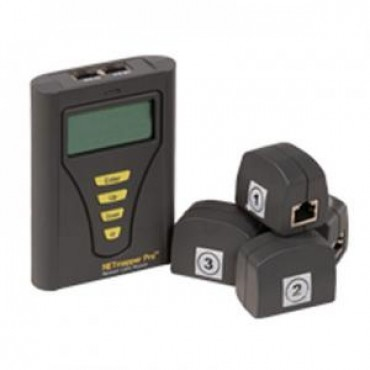

NETmapper Pro, RJ-45, 1 - 300 m, LCD, 4x AAA
Hobbes NETmapper Pro is a hand–held multifunctional network–testing device that integrates all On–Line/Off–Line and telephone line test functions in one tester. For On–Line testing, it operates as a workstation; ping network devices and illustrates the machine name/IP address/MAC address and identifies all the network devices including Router, Printer and PC Host..etc. For Off–Line testing, it operates as a professional cable checker.
Furthermore, the NETmapper Pro has integrated Digital Tone Generator and portfinder functions to trace and identify cables with precision. The Hobbes NETmapper Pro works as an all in one full functional tester and a very useful tool for all professional network administrators to quickly verify network connectivity and obtain essential information from the entire networks for troubleshooting and maintenance.
- Displays the Ethernet port status: Identifies Speed up to Gigabyte (10/100/1000)
- Ping Default router, DNS Server and user defined device.
- Scans and lists all the PC Host with IP address and computer host name or MAC Address.
- PC Host service detects: http/telnet/ DHCP and ftp services.
- Incorporates Port Finder function: locate corresponding socket on Hub/ Switch.
- Wire Map Test, Twisted Mapping Test, Cable length, and Tone Generator and Port Finder (all in one integrated function).
- Tests cables for open, short, reversed, cross, split, mis-wire, and shield continuity.
- Wire map results are displayed in a pin-to-pin format.
- Remote ID number indication for recognition on workstations.
- Two RJ45 ports on main unit for either On-Line or Off-Line Test.
- Measures cable length without remote of Cat5, Cat5E and Cat6 cables
- Self-calibrating ability for non-standard cable test (length test) and/or to increase measuring accuracy.
- User define unit of measurement in meter or feet for cable length tests.
- The Tone Generator function sends 1K Hz tone on all pins with 4 special tonalities.
- Automatically detects PoE devices and voltage.
- Battery low indicator and auto off for power saving.
- Tests telephone line voltage.
