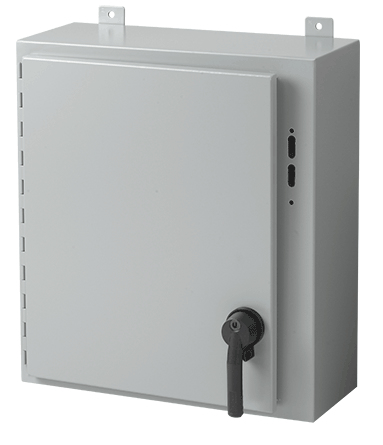

Hoffman A42SA3210LPPL Steel electrical junction box

Preferred Cutout, Disconnect Enclosure, Type 12, 1067 x 797 x 254 mm Applications:
These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without the Hoffman-supplied defeater door handle and handle hardware.

Features:
- Includes latch pivot post(s) and cover interlock bracket welded to door, cover latch bar for door, and instructions for installing disconnects
- Model numbers ending with “PL” include handle and handle latching hardware
- Specifications:
- 14 gauge steel
- Seams continuously welded and ground smooth
- Bonding provision on door
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Removable door with continuous hinge
- Data pocket is high impact thermoplastic
- Oil-resistant gasket
- Collar studs for mounting optional panels
- Holes in body and door for mounting operating handle, operating mechanism, and door closing mechanism
- Available with or without Hoffman supplied padlocking defeater handle and latching system
