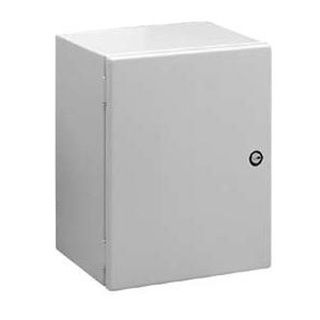

Hoffman LHC302515 Steel IP66 electrical enclosure

INLINE Type 4, 300x250x150mm, Steel, 16ga Application:
Aesthetic styling, with an attractive, durable light-gray finish, makes INLINE Enclosures an excellent choice when style and functionality are important. INLINE Enclosures have an outward formed flange to prevent contaminants from entering the enclosure and are available in three versions: window door, hinged solid door and solid screw cover.

Specifications:
- Metric dimensions
- 1.4-mm (16 gauge) steel
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or optional external mounting brackets
- Seamless foam-in-place gasket
- Grounding stud on the body
- Bonding provision on the door
- Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions

INLINE Screw-Cover Enclosures: Captivated cover screws with sealing bushings

INLINE Hinged-Door and Window-Door Enclosures:
- Door opens 180 degrees
- Romovable hinged door
- Self-grounding, slotted quarter-turn latch
- Flush-mounted 4.8-mm (3/16-in.) clear polycarbonate inside and out

Finish: RAL 7035 textured light-gray polyester powder paint inside and out

Accessories:
- DIN Rail or Panel-Mounting Brackets
- DIN3 Rails
- Lock Inserts
- Mounting-Bracket Kit
- Panels for Junction Boxes
- Wing Knob Latch

Modifications and Customizations:
Hoffman excels at modifying and customizing products to your specifications. Contact your local Hoffman sales office or distributor for complete information.
