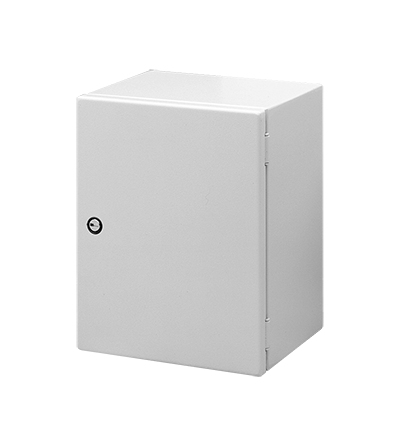

200x200x120mm, IP66, Steel, 1.4mm, Light Grey
Application:
With streamlined styling and a durable light-gray finish, these enclosures are an excellent option when style and function are key. These enclosures are ideal for indoor or outdoor applications which require corrosion protection from chemicals and water. The enclosures contain an external body flange to prevent contaminants from entering the enclosure; a strong door with removable hinges; a conductive panel and quarter-turn latch with 3mm double-bit insert for a secure closure.
Specifications:
- Dimensions in millimeters
- Manufactured from 1.4-mm thick steel (16 gauge)
- Seams continuously welded and ground smooth
- External formed body flange
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Seamless foam-in-place gasket
- Grounding stud on the body
- Bonding provision on the door
- Conductive panel included
- Quarter-turn latches furnished with 3mm double-bit insert
- Door opens 180 degrees
- Furnished hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
Finish:
RAL 7035 textured light-gray polyester powder paint inside and out. Panel is galvanized.
Accessories:
- DIN Rail or Panel-Mounting Brackets
- DIN3 Rails
- Lock Inserts
- Mounting-Bracket Kit
- Panel
- Wing Knob Latch
Modifications and Customizations:
Hoffman excels at modifying and customizing products to your specifications. Contact your local Hoffman sales office or distributor for complete information.
Notes: Panel is included.
