Features
| Type |
Freestanding rack |
| Frame type |
Open |
| Maximum weight capacity |
1134 kg |

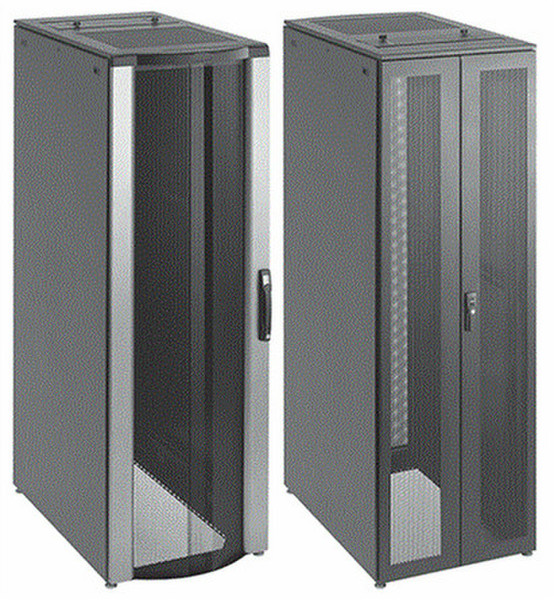

PROLINE FLOTEK PC (Passive Cooling) Server Cabinet
Designed deeper to house servers and manage power cables, PROLINE™ FLOTEK™ Cabinets rely on optimized passive airflow for cooling. The cabinets may be placed in data rooms randomly or in hot/cold aisle configurations.
Features:
- Rigid front door made of aluminum extrusions and formed perforated steel offers highly attractive appearance and durability
- Fully perforated front and rear doors and fully perforated top allow maximum air movement around equipment; conforms to server manufacturer open space requirements
- Models without sides fit together quickly for easy installation in ganged applications
- Three-point locking pushbutton swing handle on front door provides easy but controlled access; two keys included
- Rear doors are split for easy access and include 3-point, low-profile, locking swing handle
- Two sets of 19-in. square-hole rack angles support both front and rear of equipment
- Rack angles are infinitely adjustable from front to rear for positioning flexibility

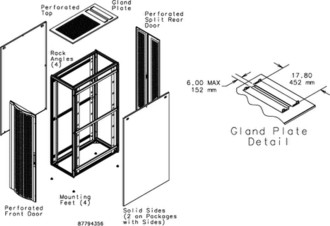

- Large gland plate in top allows easy routing of cable, pre-terminated cables and patch panels
- Mounting hardware (20 each of 10-32 screws and cage nuts) is included
Specifications:
- Rack angles have square holes with EIA 310-D spacing
- Open bottom with integral bolt-down brackets
- 16 or 14 gauge steel doors, sides and cover
- Welded 12 gauge steel frame
Finish:
Pretreated steel coated with RAL 9005 black textured, low-gloss polyester powder paint. Other finishes available—contact Hoffman Customer Service.
Load Ratings:
Static Load Rating: 2500 lb. (1134 kg)
A cabinet has a static load when it is in its final, permanent, fully secured location, and its load is uniformly applied to the two sets of rack-mounting angles.
Never move a cabinet with its maximum static load applied.
Contact Hoffman if further information is needed.
