Power
| Input voltage |
3.7 V |
| Number of reads per charge |
50000 |
Ports & interfaces
| Bluetooth |
Y |
| Operating frequency |
2400 - 2483.5 MHz |
| Interface |
Bluetooth 2.0 |
Other features
| Maximum operating distance |
0.61 m |
| Operating time |
960 min |
| Shock proof |
Y |
Scanning
| Working distance |
130 mm |
| Pitch reading angle |
-65 - 65 ° |
| Maximum scan width |
250 mm |
| Read rate (max) |
270 reads/s |
| Wavelength |
630 nm |
630 nm, 270 reads/s, Bluetooth 2.0, 272g, Grey/Orange

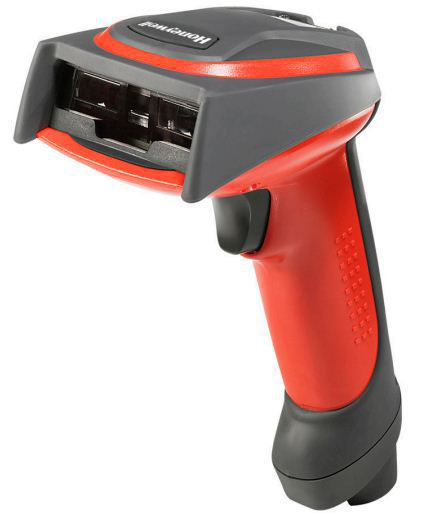

Industrial Cordless Linear Imager
The 3820i Industrial Cordless Linear Imager is designed to provide high-performance linear barcode scanning for applications that demand maximum reliability in the harshest working environments.
Powered by Adaptus Imaging Technology 5.0, the 3820i delivers fast, intuitive barcode reading across a range of high and low density codes - even those that are damaged or poorly printed. In addition, the solid state technology platform adds to the device’s overall durability and reliability.
Built for scan-intensive applications requiring a ruggedized solution, the 3820i features our highest drop specification and an IP54 rating to guarantee protection against the penetration of dust and liquid. However, unlike other industrial grade solutions, the 3820i features best-in-class ergonomics – ensuring maximum user comfort and productivity.
The 3820i features a unique design that not only allows tool-free access to the battery, but also eliminates the need to dock the scanner for charging – a true advantage for operations where downtime is not an option.
Bluetooth cordless connectivity allows users to move freely and eliminates the hazard of cables in fast-paced environments – all the while ensuring fast, accurate data communication.
- Harsh industrial environments; manufacturing, distribution center, T&L
- Read range from 2.5 to 61 cm
- Drops from 2m to concrete, independently certified to meet IP54 standards for moisture and particle resistance, no internal moving parts
- Operating temperature -10 to +50º C
- Bluetooth® radio allows freedom of movement up to 10m from base
- Tool-free battery access allows employees to quickly swap batteries and keep working
- Long-Lasting Lithium-Ion Battery: Powers up to 50,000 scans per full charge
- 3 Year factory warranty (battery 1 year warranty)
