Processor
| Processor frequency |
624 MHz |
Data transmission
| Infrared data port |
Y |
| Bluetooth |
Y |
Ports & interfaces
| Interface |
RS232, USB 1.1 |
| Headphone outputs |
1 |
Memory
| Internal memory |
256 MB |
| Compatible memory cards |
SD, SDIO |
Audio
| Speakers |
Y |
| Built-in microphone |
Y |
Technical details
| Phone function |
N |
| Barcode reader |
Y |
Networking
| Networking features |
WLAN, WPAN |
Operational conditions
| Operating temperature (T-T) |
14 - 122 °F |
Additionally
| Battery performance |
2500 mAh |
| RFID (Radio Frequency IDentification) reader |
N |
| Internal ROM |
1024 MB |

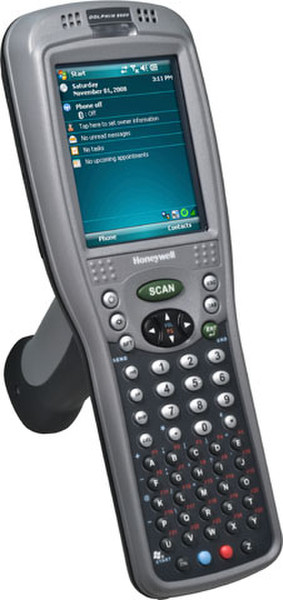

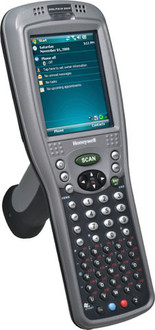

Dolphin 9950, EMEA, 5300SR Imager, 56 key, Intel XScale PXA270 624MHz, 256MB RAM/1024MB Flash, 8.89 cm (3.5 ") TFT 240x320px Touchscreen, WLAN 802.11b/g, Bluetooth, Windows Mobile 6.1
Designed to be the most ergonomic mobile computing solution for enterprise environments requiring large amounts of data capture, high-volume scanning and information management, the Dolphin® 9950 integrates a pistol-grip to facilitate comfortable single-handed data collection over extended shifts. Dolphin 9950 delivers a complete set of productivity-enhancing capabilities in a solution built for maximum reliability and ease of use. Integrated WLAN or Bluetooth® radios support real-time access to important enterprise data while providing the latest in wireless security to ensure data integrity.
Optimal Combination of Industrial-Grade Durability and Usability: Internal magnesium-alloy roll cage, environmentally sealed housing and specialized wear-resistant components deliver reliability in demanding mobile environments, while an ergonomic design provides comfortable and intuitive use.
Wireless Local and Personal Area Networking: Integrated multi-mode wireless technology includes 802.11b/g for real-time data exchange plus Bluetooth for efficient wireless connection to peripheral devices.
Versatile, High Performance Data Collection: Adaptus Imaging Technology 5.0 reads linear and 2D bar codes, captures digital images, and enables electronic signature capture—enabling workers to do more with a single device.
Shift-PLUS™ Power Management: Powers scan intensive, real-time wireless applications continuously for 10 hours or more, enhancing productivity while greatly extending useful battery life and reducing replacement costs.
Windows Mobile® 6.1: Latest industry-standard platform for developers and users ensures ease of integration and intuitive use.

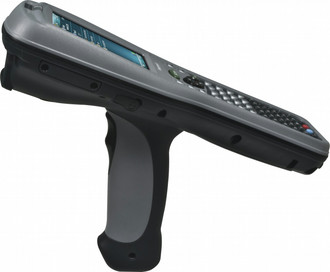

User-Preferred Ergonomic Design: Pistol-grip form factor facilitates comfortable, single-handed data collection for extended periods of use.
Long-Range Bar Code Scanning (9951 only): Allows workers to comfortably scan distant bar codes (up to 30 feet) from the ground or forktruck, resulting in increased worker productivity and safety.
