Power
| Power source type |
Battery |
| Number of reads per charge |
50000 |
| Battery life |
14 h |
| Charging time |
4.5 h |
| Input voltage |
5 V |
Ports & interfaces
| Operating frequency |
2400 - 2500 MHz |
| Interface |
Bluetooth |
| Data transfer rate |
1 Mbit/s |
Scanning
| Pitch reading angle |
-45 - 45 ° |
| Sensor type |
Laser |
Weight & dimensions
| Base weight |
179 g |
| Base dimensions |
132 x 102 x 81 mm |
Performance
| Light levels (direct sunlight) |
0 - 100000 lx |
Additionally
| Scan type |
1D/2D |
| Wireless technologies |
Wireless |
| Battery performance |
1800 mAh |
1D/PDF/2D, 838x640, 2.4-2.5 GHz, Bluetooth v2.1, USB, Keyboard Wedge, RS232, IBM 46xx (RS485), IP41, 214g, Black

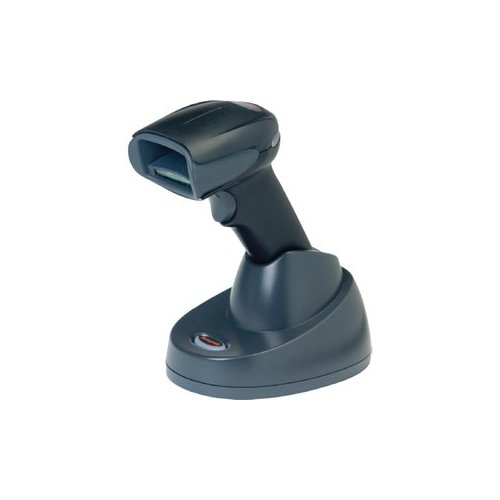

- Xenon™ 1902, Honeywell's sixth-generation of area-imaging technology, is redefining the standard for hand-held scanners. Featuring a custom sensor that is optimized for bar code scanning, Xenon 1902 offers industry-leading performance and reliability for a wide variety of applications that require the versatility of area-imaging technology plus the freedom of Bluetooth® wireless connectivity. Powered by Adaptus® Imaging Technology 6.0, Xenon 1902 delivers superior bar code scanning and digital image capture. Xenon 1902 incorporates a revolutionary decoding architecture that combines Adaptus Imaging Technology 5.5 and Omniplanar's SwiftDecoder® software along with a custom sensor, enabling extended depth of field, faster reading, and improved scanning performance on poor quality bar codes.
- Custom sensor optimized for bar code scanning improves scanning aggressiveness and protects investment by providing supply chain stability;
- Three focal options (high density, standard range and extended range) provide application-specific scanning, leading to improved productivity;
- Image processing software offers advanced editing functionality—cropping, brightening, rotating, sharpening and more—to produce high-quality digital images;
- TotalFreedom® 2.0 development platform enables the loading and linking of multiple applications on the scanner to enhance image processing, decoding or data formatting functionality, eliminating the need for host system modifications;
- Remote MasterMind® scanner management software provides a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location;
- Bluetooth Class 2, v2.1 radio enables movement up to 33 feet (10m) from base, reduces interference with other wireless systems, and lowers total cost of ownership by allowing up to seven imagers to communicate to a single base;
- Long-lasting lithium-ion battery powers up to 50,000 scans per full charge, ensuring maximum uptime;
- Optional disinfectant-ready housing protects investment with durable construction that is better able to resist the harmful effects of harsh chemicals.
