Ports & interfaces
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| PS/2 ports quantity |
2 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
Memory
| Memory slots type |
DIMM |
| Maximum internal memory |
32 GB |
| Number of memory slots |
4 |
| Supported memory types |
DDR3-SDRAM |
Expansion slots
| PCI Express x1 slots |
1 |
| PCI Express x16 slots |
2 |
| PCI slots |
3 |
Additionally
| Ethernet LAN connection |
Y |
| Chipset |
Intel Q77 Express |
| Ethernet LAN (RJ-45) ports quantity |
1 |

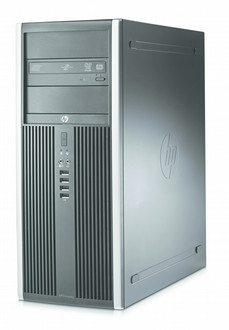

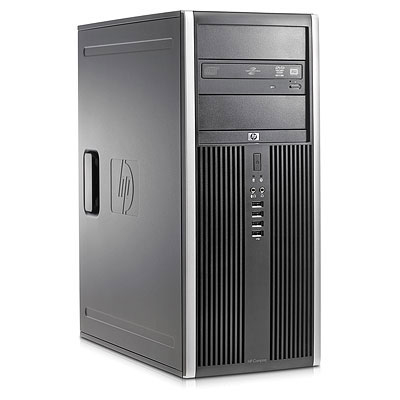

Compaq Elite 8300 Base Model, Intel Q77, 4 DIMM, 3x 3.5", 3x 5.25", 320W, PCIe x1, 2x PCIe x16, 3x PCI
Customize, expand, control.
Introducing the HP Compaq Elite 8300 Convertible Minitower; our largest, most expandable business PC form factor with impressive power.
Features
<b>Innovative technology, productive design</b>
- Featuring expansion capabilities for up to three Hard Disk Drives and two Optical Disk Drives, the Intel® Q77 Express chipset and the new 3rd generation Intel® Core™ vPro™ processor family for powerful performance.
<b>Control, manage, protect</b>
- Intel® vPro with Active Management Technology allows your IT personnel to access, diagnose, repair and manage the desktop from a remote location saving time and reducing maintenance cost.
<b>Think efficient, think global</b>
- Lower your operating costs and overall eco-footprint with HP PCs:
ENERGY STAR® qualified
EPEAT ® Gold registered
BFR/PVC free materials (excluding external peripherals and cables)
<b>Backed by HP</b>
- Maintain a consistent work environment, ease transitions and help reduce support costs with a minimum, 15-month lifecycle stability commitment from HP.
