Paper handling
| Paper handling |
70-sheet input tray, single-sheet manual feed, single-sheet rear path for thick media, standard roll feed; 50-sheet output tray |
| Custom media sizes |
Tray 1: 76 x 142 to 457 x 610 mm; manual sheet feed: 110 x 205 to 625 x 1625 mm; rear path: 110 x 205 to 625 x 1625 mm; roll feed: up to 609 mm (by rear path) |
| Roll bottom margin |
5 mm |
| Roll left margin |
5 mm |
| Media sizes supported (imperial) |
Letter, legal, tabloid, executive, C, D, C+, D+, envelopes, banners |
| Media thickness (by paper path) |
Tray 1: up to 8 mil; envelopes: up to 15 mil; rear tray: up to 15 mil; manual sheet feed: up to 8 mil; roll media: up to 8 mil |
| Recommended media weight (imperial) |
17 to 56 lb |
| Media handling |
70-sheet input tray, front manual single-sheet feed, rear manual path for thick media, standard roll feed with auto cutter |
| Margins, leading/trailing edges |
Top: 5 mm, Bottom: 12 mm (cut-sheet media), 5 mm (roll media) |
| Maximum print length |
15.2 m |
| Media types supported |
Bond and coated paper (coated, heavyweight coated, plain), photo (gloss, high-gloss, semi-gloss, satin, matte), proofing (high-gloss contract, semi-gloss contract, matte) |
| Roll top margin |
5 mm |
| Duplex print options |
None |
| Lateral margins |
Left: 5 mm, Right: 5 mm |
| Media weights by paper path |
Tray 1: 65 to 150 g/m2; manual single-sheet feed: 65 to 150 g/m2; rear path: up to 300 g/m2; roll feed: 65 to 150 g/m2 |
| Standard input trays |
1 |
| Recommended media weight |
Tray 1: 65 to 150; manual single-sheet feed: 65 to 150; rear path: up to 300; roll feed: 65 to 150 g/m² |
| Paper handling standard/input |
70-sheet input tray, single-sheet manual feed, single-sheet rear path for thick media, standard roll feed |
| Paper handling standard/output |
50-sheet output tray |
| Maximum paper trays |
1 |
| Standard media sizes |
A1, A1+, A2, A3, A4, B2, B3, B4, envelopes |
| Maximum length of sheet media |
1625 mm |
| Roll right margin |
5 mm |
| Print margin cut-sheet |
5 x 12 x 5 x 5 mm |
| Print margin roll |
5 mm |
| Roll external diameter |
100 mm |
| Non-printable area roll media (imperial) |
0.2 x 0.2 x 0.2 x 0.2 in |
| Maximum media width |
625 mm |
Input capacity
| Standard input capacity |
70 sheets |
| Maximum input capacity |
100 sheets |
Sound emission
| Acoustic pressure emissions (standby) |
37 dB(A) |
| Acoustic pressure emissions |
50 dB |
| Acoustic power emissions (standby) |
5.4 B(A) B |
| Acoustic power emissions |
6.2 B(A) |
Output capacity
| Maximum output capacity |
50 sheets |
| Standard output capacity |
50 sheets |
Other features
| Typefaces |
None |
| Compatible ink types, supplies |
Dye-based HP Vivera inks |
| Line width minimum |
0.002 in |
| Line accuracy |
+/- 0.2 % |
| JetDirect Compatible Products |
Y |
| Non-printable area (imperial cut-sheet) |
0.2 x 0.47 x 0.2 x 0.2 in |
| Driver updates |
Latest driver upgrade information available on http:// |
| Roll maximum input |
1 |
| Control panel |
2 LEDs for status: Power, Attention; 3 keys: Power, Cancel, OK; display area containing information icons |
Print quality
| Minimum line width |
0.04 mm |
| Printing colours |
Yellow, Light cyan, Magenta, Cyan |
| Printer management |
HP Designjet System Maintenance |
| Print quality (black, best quality) |
2400 x 1200 DPI |
| Optional Printer Languages |
Adobe PostScript 3 via software RIP |
| Maximum duty cycle |
900 pages per month |
| Print quality (black, draft quality) |
600 DPI |
| Ink drop |
4 pl |
| Print resolution (colour, normal quality) |
600 x 1200 DPI |
Printing
| Print time (colour image ISO N5, normal quality, D coated paper) |
Up to 5.3 min/page min/page |
| Print time (color image ISO N5, best quality, B coated paper) |
Up to 4.2 min/page min/page |
| Print speed (color image, draft quality, coated paper) |
22.8 m²/hr\n245.3 ft²/hr |
| Print time (color image ISO N5, best quality, D coated paper) |
Up to 12.1 min/page min/page |
| Print time (color image ISO N5, draft quality, D coated paper) |
Up to 1.2 min/page min/page |
| Print speed (imperial) |
245 ft²/hr |
| Print time colour line drawing (best, D) |
Up to 12.3 min/page |
| Print time colour line drawing (draft, A1) |
Up to 1.3 min/page |
| Print time colour line drawing (draft, D) |
Up to 1.3 min/page |
Ports & interfaces
| Interface |
USB 2.0, Centronics parallel IEE-1284 (ECP compliant), 1 EIO slot, HP Jetdirect 620n Fast Ethernet Print Server |
Print technology
| Print head nozzles |
304 |
| Print head |
6 (1 each cyan, magenta, yellow, black, light cyan, light magenta) |
System requirements
| Minimum system requirements for Macintosh |
iMac G3, G4, G5 dual processor, iBook, PowerBook, eMac; Mac (OS 9.1, OS X v 10.1.5), 128 MB RAM, 100 MB available hard disk space |
| Browser supported |
Windows: Microsoft Internet Explorer 6.0 and above; Mac OS 9: Netscape 7.0.2 and above, Microsoft Internet Explorer 5.0 and above; Mac OS X: Netscape 7.0.2 and above, Microsoft Internet Explorer (5.2.3 and above, Safari 1.0 and above) |
Weight & dimensions
| Pallet dimensions (W x D x H) |
1200 x 1100 x 2098 mm |
| Pallet weight (imperial) |
540 lbs |
| Pallet dimensions (W x D x H) (imperial) |
47.2 x 43.3 x 82.6 " |
| Product dimensions when open (LxWxD) |
41.3 " |
| Package dimensions (W x D x H) |
46.9 x 21.5 x 19.5 " |
| Package weight (imperial) |
81.2 lb lbs |
| Maximum dimensions (W x D x H) |
1050 x 1020 x 220 mm |
| Pallet weight |
245000 g |
Certificates
| Safety |
IEC 950-compliant, EU LVD and EN60950 compliant, Russia VNIIS, Poland ELTEST |
| Energy Star certified |
Y |
| Electromagnetic compatibility |
Compliance for Class B products, Class A when connected to LANs, EU (EMC Directive) |
Performance
| Internal memory |
64 MB |
| Processor frequency |
16 MHz |
Media formats
| Maximum roll length |
15.2 m |
| Maximum media length (imperial) |
64 " |
| Maximum media width (imperial) |
24.6 " |
| Maximum print length (imperial) |
50 ft |
| ISO B-series sizes (B0...B9) |
B2 |
| Media sizes standard (imperial rolls) |
3 to 24.6-in wide sheets, up to 24-in rolls |
Networking
| Network ready |
Y |
| Networking features |
Ethernet, Fast Ethernet |
Operational conditions
| Recommended operating temperature range (T-T) |
15 - 30 °C |
| Operating temperature (T-T) |
59 - 86 °F |
Power
| Power consumption (active) |
65 W |
Additionally
| Print speed (colour, normal quality, A4/US Letter) |
1.7 ppm |
| Print time (colour image ISO N5, normal quality, A3 glossy paper) |
Up to 4 min/page min/page |
| Print time (color image ISO N5, best quality, B glossy paper) |
Up to 6 min/page min/page |
| Print time (colour image ISO N5, normal quality, B coated paper) |
Up to 1.9 min/page min/page |
| Print time (colour image ISO N5, best quality, D glossy paper) |
Up to 12.1 min/page min/page |
| Print time (color image ISO N5, normal quality, B glossy paper) |
Up to 4 min/page min/page |
| Color printing technology |
HP Color Layering technology, PhotoRET IV |
| Print time (color image ISO N5, normal quality, D glossy paper) |
Up to 11.9 min/page min/page |
| Print time (colour image ISO N5, best quality, A3 glossy paper) |
Up to 6 min/page min/page |
| Print quality (colour, best quality) |
2400 DPI |

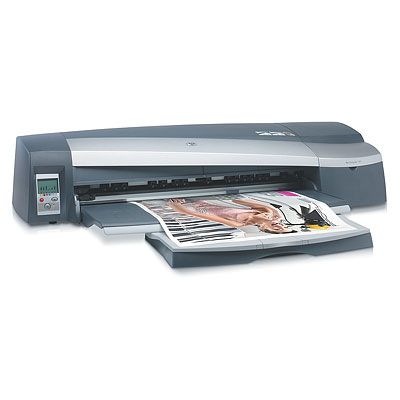

Designjet 130nr, A1+, 64MB, IEEE 1284, USB 2.0, Fast Ethernet
Focus on your creativity and represent your ideas with convincing colours and photo-image quality that resist fading longer than traditionally developed photos. Do not limit yourself and work in all sizes up to A1+.
Features
- See vibrant images with brilliance, sharpness and realistic detail every time you print. Impressive photo-quality results are achieved with fade-resistant, dye-based HP inks providing rich colour depth, minimal dot visibility and uniform gloss.
- Bring images to life with amazingly accurate colours which reproduce consistently from print to print. A built-in colour sensor enables automatic printhead alignment and automatic closed-loop color calibration ensures maximum colour consistency.
- Save time and money as there’s no need to cut and paste or outsource with this multi-format printer. Print easily on a range of sizes and widths up to 625 mm and there is an automatic roll feeder and a rear paper path for thick media.
