Sound emission
Acoustic pressure emissions |
52 dB |
Acoustic power emissions (standby) |
4.4 B |
Acoustic pressure emissions (powersave) |
Not audible |
Acoustic pressure emissions (standby) |
29 dB(A) |
Acoustic power emissions |
6.5 B(A) (active/printing), 4.4 B(A) (standby) |
Paper handling
Custom media sizes |
8.3 x 8.3 to 24 x 74.7 in 210 x 210 to 610 x 1897 mm |
Roll bottom margin |
5 mm |
Roll left margin |
5 mm |
Roll right margin |
5 mm |
Print margin cut-sheet |
17 x 17 x 5 x 5 mm |
Print margin roll |
5 mm |
Roll external diameter |
100 mm |
Roll top margin |
5 mm |
Media sizes supported (imperial) |
ANSI A, B,C, D; Arch A, B, C, D |
Non-printable area roll media (imperial) |
0.2 x 0.2 x 0.2 x 0.2 in |
Media handling |
Single sheet feed, roll feed, automatic cutter (cuts all media except canvas) |
Margins, leading/trailing edges |
Sheet: 17 mm (top), 5 mm (right), 5 mm (left), 17 mm (bottom) |
Media types supported |
Bond and coated, technical, film, photographic, proofing, self-adhesive, banner and sign, canvas |
Duplex print options |
N |
Lateral margins |
5 mm |
Standard media sizes |
610 mm models: 140 x 140 to 610 x 1897 mm sheets, 458 to 610 mm rolls\n1067 mm models: 140 x 140 to 1067 x 1897 mm sheets, 458 to 1067 mm rolls |
Maximum length of sheet media |
1897 mm |
Roll paper |
Y |
Media formats
Media sizes standard (imperial rolls) |
8.3 to 24-in wide sheets; 18 to 24-in rolls |
Maximum roll length |
45.7 m |
Maximum media length (imperial) |
74.7 " |
Maximum print length (imperial) |
Unlimited (depends on media thickness) |
Other features
Air pressure |
0.69 mmH2O |
Non-printable area (imperial cut-sheet) |
0.7 x 0.7 x 0.2 x 0.2 in |
Roll maximum input |
1 |
Compatible ink types, supplies |
Dye-based (colour), pigment-based (black) |
Line accuracy |
+/- 0.2 % |
Line width minimum |
0.0008 in (theoretical value); 0.003 in (practical value) |
JetDirect Compatible Products |
Y |
Printing
Print time black and white line drawing (draft, metric A1 plain paper) |
80 sec/page |
Print time black and white line drawing (draft, US D plain paper) |
80 sec/page |
Print time colour line drawing (draft, A1) |
80 sec/page |
Print time colour line drawing (draft, D) |
80 sec/page |
Print time (color image ISO N5, draft quality, D coated paper) |
2.5 min/page min/page |
Print time (color image ISO N5, normal metric A1 coated paper) |
7 min/page |
Print speed colour line drawing (draft, US D plain paper) |
31 D pph |
Print time (colour image ISO N5, normal quality, D coated paper) |
7 min/page min/page |
Operational conditions
Operating altitude (imperial) |
9842 ft |
Operating temperature (T-T) |
59 - 95 °F |
Recommended operating temperature range (T-T) |
15 - 35 °C |
Networking
Embedded web server |
N |
Network ready |
Optional |
System requirements
Mac compatibility |
Y |
Minimum system requirements for Macintosh |
Macintosh Mac OS X (10.4, 10.5): PowerPC G4, G5, or Intel Core Processor, 512 MB RAM, 1 GB available hard disk space |
Print quality
Ink drop |
4 pl (colour), 18 pl (black) |
Printing colours |
Cyan |
Print quality (black, best quality) |
2400 x 1200 DPI |
Power
Power consumption (off) |
1.5 W |
Power consumption (PowerSave) |
17 W |
Weight & dimensions
Package weight (imperial) |
134 lbs |
Package dimensions (W x D x H) |
60.6 x 25.4 x 29 " |
Certificates
Energy Star certified |
Y |
Electromagnetic compatibility |
Compliant with the requirements for class B ITE products: EU (EMC directive), US (FCC rules), Canada (DoC), Australia (ACA), New Zealand (MoC), China (CCIB), class A for Korea (MIC), Taiwan (BSMI) |
Safety |
Compliant with the requirements for ITE products: EU Low Voltage Directive, US and Canada CSA certified, Mexico NOM-1-NYCE, Argentina IRAM, China CCIB and CCEE, Singapore PSB, Russia GOST, Poland PCBC |
Media types
Photo paper |
Y |
Coated paper |
Y |
Ports & interfaces
Interface |
USB 2.0 compliant port, IEEE-1284-compliant parallel port, EIO Jetdirect accessory slot |
Additionally
Print speed colour line drawing (draft, A1 plain paper) |
31 A1 prints per hour |
Print quality (colour, best quality) |
2400 DPI |
Print time (colour image ISO N5, best quality, D glossy paper) |
16 min/page min/page |
Print time (color image ISO N5, draft quality, A1 coated paper) |
2.5 min/page |
Print time (color image ISO N5, normal metric A1 glossy paper) |
9.5 min/page |
Print time (color image ISO N5, normal quality, D glossy paper) |
7 min/page min/page |
Print time (colour image ISO N5, best quality, metric A1 glossy paper) |
16 min/page |

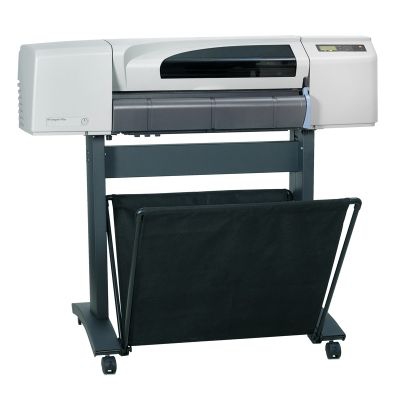

Designjet 510ps 610 mm Thermal Inkjet, 2400 x 1200, 3.5 min/page A1
Bring your CAD printing in-house and gain greater control over cost and quality. HP's most affordable standalone printer also delivers fast speeds, up to 55 seconds for a A1-sized document, and easy HP-GL/2 direct printing.
- Impress your clients with high-quality, professional-looking output: this printer's 2400 x 1200 optimised dpi resolution ensures sharp detail, fine lines and high accuracy. Process complex files easily with 160 MB memory, and enjoy HP-GL/2 support.
- HP makes it easy and affordable for you to produce high-quality technical CAD prints in-house. A choice of 28-ml and 69-ml HP ink cartridges enables cost-effective printing matched to your needs. Operation is easy with an intuitive control panel.
