Networking
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T |
| Ethernet LAN data rates |
1000, 100, 10 Mbit/s |
| Networking features |
Gigabit Ethernet |
Expansion slots
| PCI Express slots version |
2.0 |
| PCI Express x16 slots |
1 |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
Storage
| Hot-swap hard drive bays |
N |
| Controller interface type |
B110i |
| Number of hard drives supported |
8 |
Memory
| Maximum RDIMM memory |
192 GB |
| Maximum UDIMM memory |
32 GB |
| Supported RDIMM clock speeds |
1333, 1066, 800 MHz |
| Supported DIMM module capacities |
4GB, 16GB |
| ECC |
Y |
| Number of DIMM slots |
12 |
Other features
| Graphics adapter family |
AMD |
Processor
| Motherboard southbridge |
AMD SP5100 |
| Supported processor frequency (max) |
2.8 GHz |
| Number of processors supported |
2 |
Graphics
| Maximum graphics adapter memory |
64 MB |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |

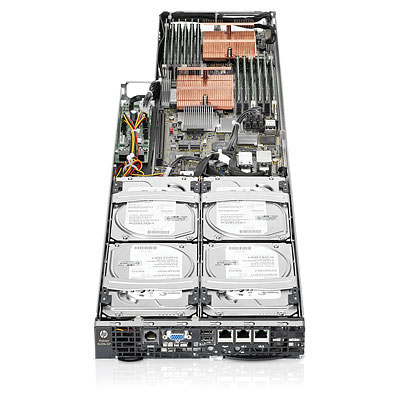

HP ProLiant SL335s G7 1U Right Tray Node Server
The HP ProLiant SL335s G7 Server is part of the latest family, the HP ProLiant SL6500 Scalable System, of HP server solutions optimized for scale-out customers to greatly reduce costs and maximize power efficiency by sharing power supplies and fans, while providing an infrastructure that is easy to access and service. Customers can deploy up to eight independent HP ProLiant SL335s G7 Servers into the 4U HP ProLiant SL6500 Chassis.
The server supports up to two AMD® Opteron® processors with 12 DDR3 DIMM sockets (128 GB) and 4 large form factor (LFF) or 8 small form factor (SFF) hard drives. With the SL335s G7 Server you can redefine your data center with the high efficiency multi-node chassis which offers shared power and cooling, with front I/O cabling that is easier for servicing. The HP ProLiant SL335s G7 Server is ideal for environments needing high density compute at a low cost.<br /><br /><b>Scale without Limits</b><br />
• Support for 12 DIMM slots, up to two AMD Opteron 4100 series processors and four (4) 3.5-inch (LFF) or eight (8) 2.5-inch (SFF) hard disk drives<br /><br />
<b>Redefine Data Center Efficiency</b><br />
• High efficiency, multi-node chassis with shared power supply and fan<br /><br />
<b>Deploy with Confidence</b><br />
• Easy Setup CD for rapid deployments
