Ethernet LAN features
Cabling technology |
10/100Base-T(X) |
Ethernet LAN data rates |
10, 100 Mbit/s |
Ports & interfaces
WAN connection |
Ethernet (RJ-45) |
USB ports quantity |
1 |
Security
VPN support |
IPSec VPN, GRE VPN, DSVPN, SSL VPN, L2TP VPN |
MAC address filtering |
Y |
Protocols
VoIP protocols |
RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS |
DHCP client |
Y |
DHCP server |
Y |
Management features
Quality of Service (QoS) support |
Y |
Web-based management |
Y |
Additionally
RS-232 port |
1 |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
8 |

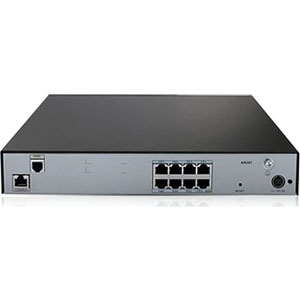

AR207V-P Basic Configuration(Includes AR207V-P Chassis, with Basic Software and Document), ADSL2+ ANNEX A/M WAN, 8x FE LAN(POE), 4x FXS+1x FXO, 1x USB Interfaces
Huawei AR150&200 series enterprise routers (AR150&200) are next-generation enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP), which take advantage of Huawei long-term accumulation in data communication, wireless, access network, and core network fields. The AR150&200 integrates routing, switching, 3G, voice, and security functions. It uses a multi-core CPU and non-blocking switching structure that provides industry-leading system performance, meeting service development requirements both now and in the future. The AR150&200 provides an integrated solution for enterprise networks, speeds up multi-service provision, and protects customers' investments.
AR150&200 series routers are designed with multi-core CPU and distributed service processing to double the performance than other same level products in the industry.
With the "All-In-One" design concept,AR150&200 series routers integrate multiple services including Routing,Switching,Firewall,Security,HQoS,Multicast,VPN(IPSec/GRE/MPLS VPN/SSL VPN/DSVPN/L2TP),software-based AP Controller etc.
AR207V uses modularized hardware design,which integrate 8 FE LAN interface ,one ADSL2+ AnnexA/M WAN interface and 4FXS+1FXO interface.The LAN interface FE0 can be changed to a WAN interface.
AR150&200 series routers use fan-less design that reduces power consumption and noise,providing a good user experience.
AR207V-P supports embeded DSP module and various voice features:
1)Basic voice services provided by built-in PBX,SIP Server and SIP Access Gateway;
2)Value-added services including multi-party voice conference/IVR/Group services/Intelligent routing etc.
3)Interconnection with NGN/IMS/PBX/Terminal of mainstream vendors to provide Unified Communication solutions.
4)Integrated 4 FXS and 1 FXO ports to connect analog phones.
