Management features
| Multicast support |
Y |
| Quality of Service (QoS) support |
Y |
Data transmission
| MAC address table |
16000 entries |
| Number of VLANs |
4000 |
| Supported data transfer rates |
10/100Mbps, 10/100/1000Mbps |
Networking
| Port mirroring |
Y |
| VLAN support |
Y |
| Rate limiting |
Y |
| IGMP snooping |
Y |
| 10G support |
N |
Security
| Static port security |
Y |
| MAC address filtering |
Y |
| Access Control List (ACL) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| SFP/SFP+ slots quantity |
4 |
Protocols
| Management protocols |
SNMPv1/v2/v3, RMON, GVRP, SSHv2 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |

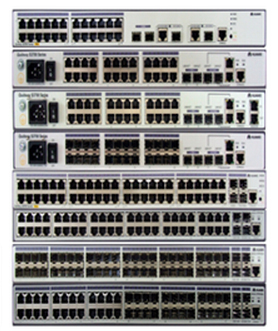

S3700-52P-PWR-EI Mainframe(48 FE RJ45,4 GE SFP,PoE,Dual Slots of power,Without Power Module)
The S3700 series enterprise switches (S3700s) are next-generation energy-saving Layer 3 switches. The S3700 utilizes cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software to provide high-performance access and aggregation to an enterprise campus network. The S3700 is easy to install and maintain. With its flexible VLAN deployment, PoE capabilities, comprehensive routing functions, and capability to migrate to an IPv6 network, the S3700 helps enterprise customers build next-generation IT networks. In addition, the S3700 uses advanced reliability technologies such as stacking, VRRP, and RRPP, enhancing network reliability and diversity.
Stackable
iStack is a technology that enables multiple devices supporting the stacking feature to function as a logical device. iStack has the following advantages:
1)Protecting investments during network capacity expansion
2)Simplifying configuration and management during capacity expansion: multiple physical switches form a logical switch
3)Improving system reliability by using the redundancy backup mechanism
4)Supporting link aggregation between member switches
5)Providing more ports and higher bandwidth
Green and low ratiation design
The product incorporates an energy-saving integrated circuit design to ensure even heat dissipation. Idle ports can enter a sleep mode to further reduce power consumption.
Radiation produced by the product is within the standard range for electric appliances and causes no harm to the human body.
Maintenance-free, easy deployment and effortless management
The product supports automatic configuration and plug-and-play, which dramatically reduces maintenance costs.
The product supports GARP VLAN Registration Protocol (GVRP), which dynamically distributes, registers, and propagates VLAN attributes to ensure correct VLAN configuration and reduce network administrator workloads.
Powerful surge protection capability
The product uses a Huawei-patented surge protection technique to prevent lightning-induced overvoltage.
All ports on the product have 6 kV of surge protection, making them eight times more lightning-proof than 4 kV switches. The Huawei patented surge protection technique greatly reduces the possibility of equipment being damaged by lightning, even in extreme situations or in scenarios where grounding is not feasible.
Carrier class reliability and quality
Huawei is a world-leading telecommunication devices vendor, and now gaining world N0.2 position in carrier market.
Leveraging Huawei’s strong R&D capabilities and comprehensive technical expertise, Huawei Enterprise provides a wide range of highly efficient and carrier class customer-centric ICT products, solutions and services to global vertical industry and enterprise customers.
