Operational conditions
| Operating altitude |
0 - 1800 m |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
20 |
| SFP+ module slots quantity |
4 |
| SFP module slots quantity |
4 |
Management features
| Multicast support |
Y |
| ARP inspection |
Y |
Data transmission
| MAC address table |
16000 entries |
| Switching capacity |
336 Gbit/s |
| Throughput |
132 Mpps |
Security
| Authentication |
MAC-based authentication, Port-based authentication |
| SSH/SSL support |
Y |
| BPDU filtering/protection |
Y |
| MAC address filtering |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
336 Gbit/s, 132 Mpps, 24 Ethernet 10/100/1.000, 4 (10/100/1.000 SFP), 4 Gig SFP, X-Serie: 4 x 10 Gig SFP+

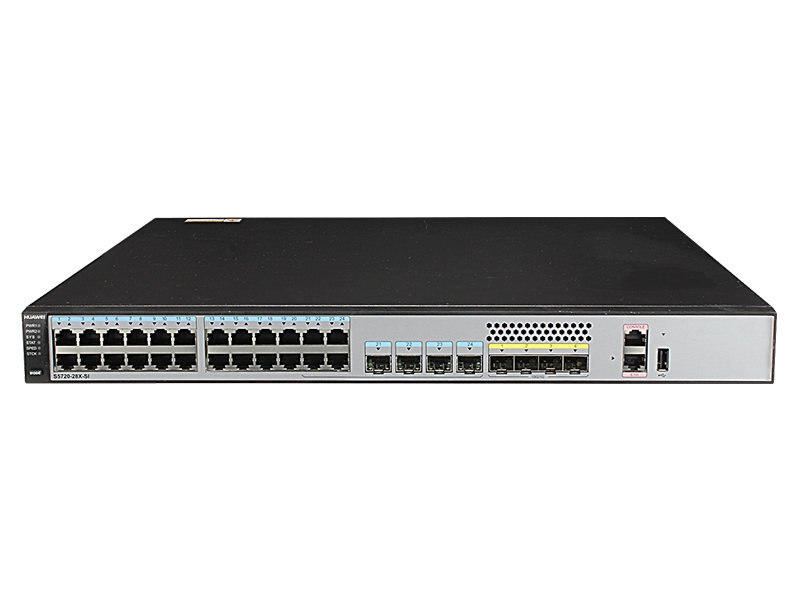

Flexible Gigabit Ethernet switches providing resilient, high-density Layer 3 switching for data centers, with rich service features supporting multi-terminal, HD video surveillance and video conferencing applications. 10 Gbit/s upstream ports, intelligent iStack clustering, and IPv6 forwarding capabilities provide flexibility for use as an aggregation switch in enterprise campus networks.
Next-generation reliability, security, and energy-saving technologies make S5720-SI Series Switches easy to install and maintain, and an excellent choice for low Total Cost of Ownership (TCO).
Get advanced security and service features in an energy-efficient switch for high-density Gbit/s access in data centers or aggregation switches in campus networks
- Flexible networking ensures a high ROI: Provides full-gigabit ports and fixed GE/10 GE uplink ports
- Abundant service features: More powerful Layer 3 routing capability, support for multi-terminal, high-definition video surveillance and video conferencing
- Easy O&M: Works as a Super Virtual Fabric (SVF) client that is plug-and-play with zero configuration for simplified network management
- High reliability: Multiple devices can be connected to set up a stack that functions as a virtual switch, reducing service interruption time
