Performance
| Noise level |
45 dB |
| Waveform |
Sine |
| Number of phases |
2 |
| Cooling type |
Active |
| Power protection features |
Overload |
| Number of input phases |
1 |
| Number of output phases |
1 |
Power
| Input operation voltage (max) |
275 V |
| Input operation voltage (min) |
125 V |
| Efficiency |
91% |
| Power supply input frequency |
45/66 Hz |
| Output power capacity |
3000 VA |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output power |
2400 W |
Design
| Form factor |
Rackmount/Tower |
Packaging content
| Quick installation guide |
Y |
Ports & interfaces
| Power plug |
C13 coupler |
| AC outlets quantity |
2 AC outlet(s) |
Technical details
| Output frequency |
50/60 Hz |
Operational conditions
| Operating altitude |
0 - 1000 m |

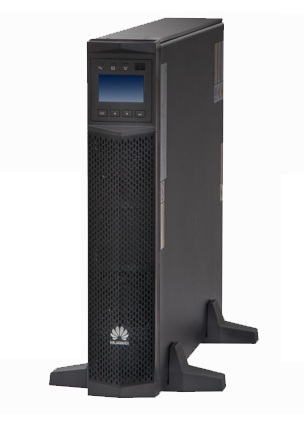

3kVA/2.1kW, Ph/N/PE, 220-240V, 50/60Hz, 45dB, RS-232, 11.2kg, Black
Features
High Reliability
- 5kA lightning protection design on input port
- 80-280 Vac wide input voltage range to minimize battery use:
- 280-176 Vac for 100% load; 176-80 Vac for 100%-40% load
- (derating linearly)
- Failure alarm in advance for key components including bus
- capacitors, fans, and batteries
Low TCO
- High efficiency: up to 95% for 15/20 kVA; 94.5% for 10 kVA;
94% for 6 kVA
- High power density of up to 20kVA/3U
High Availability
- Highly expandable design: up to 4 units paralleled together
- Flexible battery configuration
- Rack/tower convertible
Intelligent Battery Management
- Intelligent temperature compensation
- Intelligent hibernation technology extending battery lifespan
- Battery capacity estimation and health evaluation using selflearning
- technology
Easy Management
- User friendly Liquid Crystal Display(LCD) that displays
- operation states in real time
- Various communication interfaces including RS485, USB, dry
- contacts and SNMP
- Web access using SSL
Optional Components
- SNMP Card
- Modbus Card
- Dry Contact Card
- PDU
- Battery Pack
- STS
- Isolation Transformer
- Temperature Sensor
- Ambient Temperature and Humidity Module
