Design
Rack capacity |
3U |
Form factor |
Rackmount |
Power
Input operation voltage (max) |
286 V |
Input operation voltage (min) |
160 V |
Power supply input frequency |
50/60 Hz |
Surge energy rating |
2400 J |
Output power capacity |
3000 VA |
Output operation voltage (min) |
208 V |
Output operation voltage (max) |
253 V |
Output power |
2700 W |
Ports & interfaces
AC outlet types |
C13 coupler, C19 coupler |
AC outlets quantity |
10 AC outlet(s) |
Other features
Operating temperature (T-T) |
32 - 104 °F |
Nominal input voltage |
230 V |
Nominal output voltage |
230 V |
Battery
Battery technology |
Sealed Lead Acid (VRLA) |
Hot-swap battery |
Y |
Battery recharge time |
4 h |
Typical backup time at half load |
17 min |
Typical backup time at full load |
7 min |

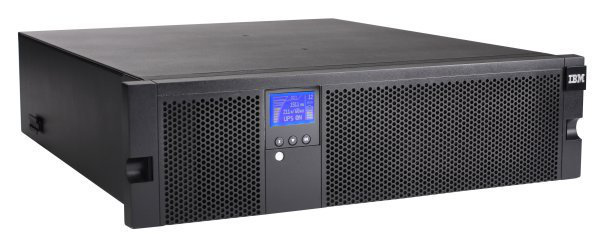

IBM 3000VA LCD 3U Rack UPS (230V)
The IBM 3000VA UPS has a bright, easily customizable, and graphical LCD display that lets you configure the device and displays important UPS status information in one of nine languages (English, French, German, Spanish, Russian, Korean, Japanese, Simplified Chinese, and Traditional Chinese). The UPS is exceptionally easy to manage and an ideal solution for standardization across the global enterprise.\n\nThis UPS enhances system availability with Advanced Battery Management (ABM) technology, which significantly extends battery service life, allows individual control of receptacle groups to maximize run time for critical devices in the event of a prolonged power outage, and provides a real-time clock that enables precise shutdown and power up of systems in a preferred sequence, and records specific power-related occurrences for more accurate trending and data analyses.\n\nThe IBM 3000VA UPS integrates with IBM Systems Director Active Energy Manager to help improve energy management..\n\nDelivering up to 2700 watts of power in 3U of rack space, this 3000 Rack UPS optimizes power protection and is designed for high-efficiency operation. This can help reduce energy usage and cooling costs, improve energy management and optimize workload performance and availability for IBM System x® and BladeCenter® server environments.\n\nProduct features\n- High-efficiency protection delivering more real power (Watts) in space-saving design.\n- Nine language graphical Liquid Crystal Display (LCD), which provides intuitive at the rack management and monitoring capabilities.\n- Hot-swappable batteries for maximum uptime, availability, and ease of maintenance.\n- Standard intelligent IBM UPS Manager software to monitor, manage and to gracefully shut down the connected load in the event of a power failure.\n- Optional Network Management Card (NMC) for enhanced UPS monitoring and control.\n- Optional external battery module for scalable runtime requirements.\n- Optional Environmental Monitoring Probe for thermal management requirements.
