Ports & interfaces
| Host interface |
PCI Express x8 |
| PCI Card form factor |
Half-height (low-profile) |
| PCI Express slots version |
2.0 |
| External mini-SAS ports |
2 |
Performance
| Internal memory |
512 MB |
| Internal memory type |
DDR2 |
| S.M.A.R.T. support |
Y |
| SSD support |
Y |
| Processor frequency |
800 MHz |
| RAID Level Migration |
Y |
| Online Capacity Expansion |
Y |
Other features
| External ports |
8x SAS 2.0 |
Abstract

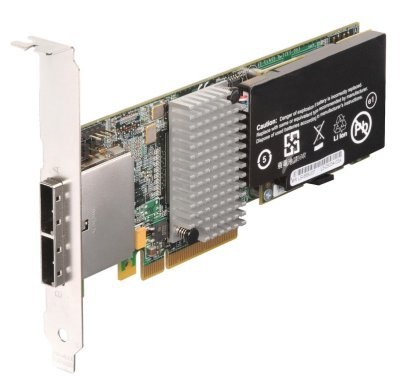

The ServeRAID M5025 SAS/SATA Controller for IBM System x is the next-generation 6 Gbps SAS 2.0 external RAID controller. This adapter has two external mini-SAS connectors to control up to 240 devices and supports global and dedicated hot-spare drives. The ServeRAID M5025 controller delivers a full 6-Gbps SAS 2.0 RAID solution with the performance advantages of an extended cache and a standard battery backup unit. With the attachment of the ServeRAID M5000 Advanced Feature Key, the ServeRAID M5025 offers the option of RAID 6, RAID 60 and SED Encryption Key Management.
Contents
The ServeRAID M5025 SAS/SATA Controller for IBM System x is the next-generation 6 Gbps SAS 2.0 external RAID controller. This adapter has two external mini-SAS connectors to control up to 240 devices and supports global and dedicated hot-spare drives. The ServeRAID M5025 controller delivers a full 6-Gbps SAS 2.0 RAID solution with the performance advantages of an extended cache and a standard battery backup unit. With the attachment of the ServeRAID M5000 Advanced Feature Key, the ServeRAID M5025 offers the option of RAID 6, RAID 60 and SED Encryption Key Management.
Did you know
6 Gbps SAS 2.0 technology has been introduced to address data off-load bottlenecks in the direct-access storage environment. This new throughput doubles the transfer rate of the previous generation. SAS 2.0 is designed for backward compatibility with 3 Gbps SAS as well as with 3 Gbps SATA hard drives.
