Processor special features
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Cache |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
37092 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Processor
| ECC supported by processor |
Y |
| Tcase |
76 °C |
| Maximum internal memory supported by processor |
144 GB |
| Processor frequency |
1.86 GHz |
| Stepping |
D0 |
| Processor system type |
DP |
| Processor operating modes |
64-bit |
| Processor cache |
4 MB |
| Number of processors installed |
1 |
| Processor cores |
2 |
| Maximum number of SMP processors |
2 |
| Thermal Design Power (TDP) |
80 W |
| CPU multiplier (bus/core ratio) |
14 |
| Processor lithography |
45 nm |
| Processor package size |
42.5 mm |
| Embedded options available |
N |
| FSB Parity |
N |
| Conflict Free processor |
N |
| Physical Address Extension (PAE) |
Y |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
19.2 GB/s |
| Memory clock speeds supported by processor |
800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBEZ |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Number of QPI links |
2 |
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
Storage
| Hard drive interface |
Serial Attached SCSI (SAS) |
| RAID support |
Y |
| Maximum storage capacity |
0.6 TB |
| Hard drive size |
2.5 " |
| Hot-swap |
Y |
Memory
| Maximum internal memory |
96 GB |
| Memory slots |
12x DIMM |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1333 MHz |
| ECC |
Y |
Other features
| Mac compatibility |
N |
| Disk array controller |
LSI1064e |
| Network cards |
Broadcom 5709S |
Networking
| Network ready |
Y |
| Networking features |
Gigabit Ethernet |
| Supported network protocols |
TCP/IP |
Design
| Chassis type |
Blade |
| Optical drive type |
N |
Ports & interfaces
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Graphics
| Maximum graphics adapter memory |
16 MB |
Additionally
| Intel AES New Instructions |
N |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
4.8 GT/s |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| InTru™ 3D Technology |
N |

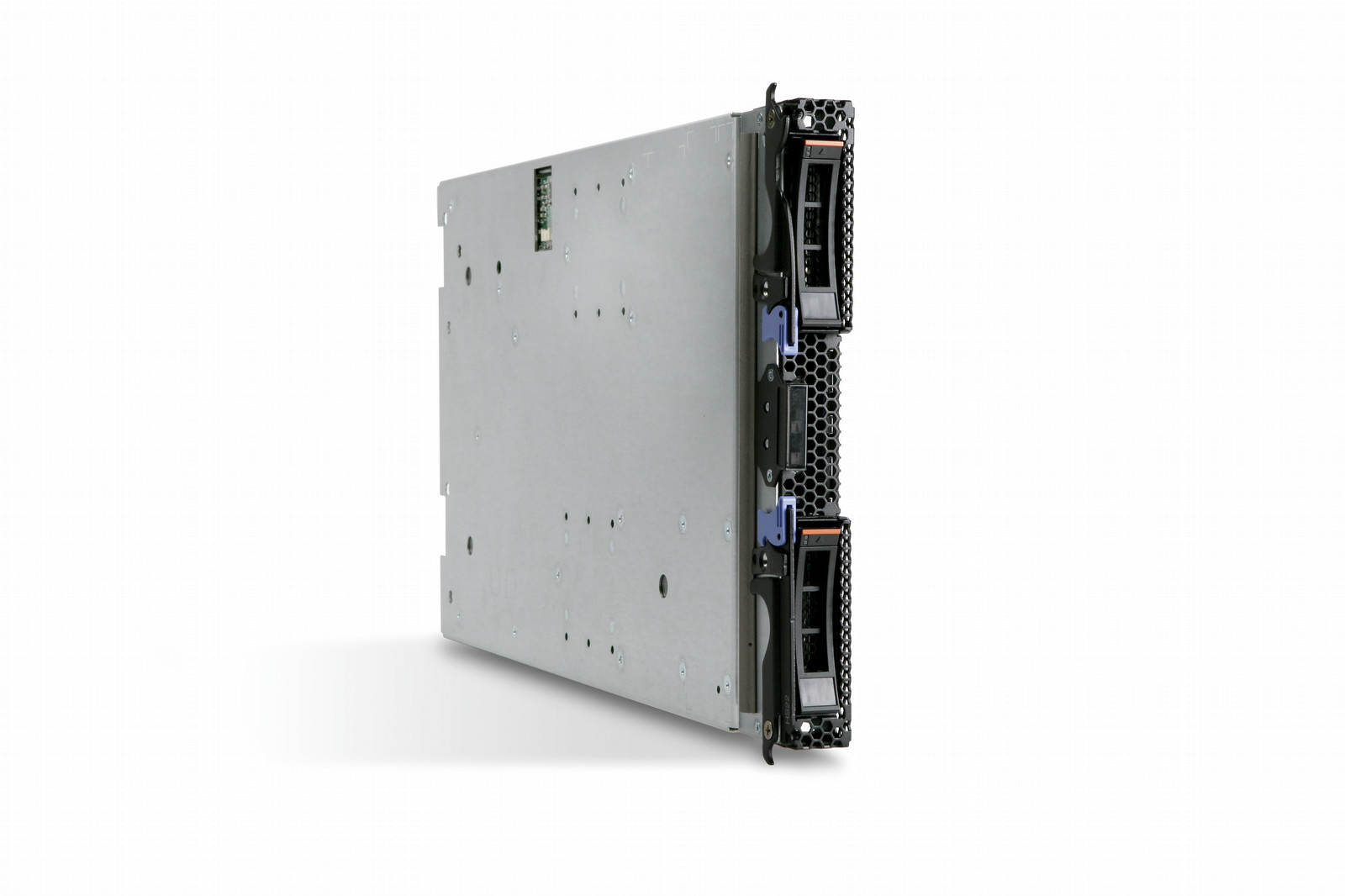

BladeCenter HS22, E5502 1.86 GHz, 2GB, SAS, Gigabit Ethernet
-Improve service with unparalleled RAS features and innovative management.
-Reduce cost through increased performance, utilization and efficiency.
-Manage growth and reduce risk on a BladeCenter platform with proven stability.
Designed for versatility
The IBM® BladeCenter® HS22 offers flexible options to support a broad range of workloads, including virtualization and enterprise applications. Along with intuitive UEFI-based tools, the HS22 can be customized and deployed quickly while best-in-class reliability features help keep you up and running. Mix and match the HS22 with the industry’s most diverse set of chassis and blades and that go beyond x86.
Built for performance
The HS22 provides outstanding performance with support for the latest Intel® Xeon® processors, high-speed I/O, and support for high memory capacity and fast memory throughput. The HS22 can run applications up to twice as fast compared to previous generation blades. In fact, you can run many applications faster than even competitor four-socket blades.
