Processor special features
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
27203 |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
Processor
| Processor frequency |
1.86 GHz |
| Processor operating modes |
64-bit |
| Processor cores |
2 |
| Maximum number of SMP processors |
1 |
| Thermal Design Power (TDP) |
65 W |
| CPU multiplier (bus/core ratio) |
7 |
| Processor lithography |
65 nm |
| Processor package size |
37.5 mm |
| Thermal Monitoring Technologies |
Y |
| Execute Disable Bit |
Y |
| Processor cache |
2 MB |
| Embedded options available |
N |
| FSB Parity |
N |
| Number of Processing Die Transistors |
167 M |
| Processor front side bus |
1066 MHz |
| Conflict Free processor |
N |
| Processor cache type |
L2 |
| Processor codename |
Conroe |
| Physical Address Extension (PAE) |
32 bit |
| ECC supported by processor |
N |
| Tcase |
61.4 °C |
| Bus type |
FSB |
Storage
| Total storage capacity |
2000 GB |
Ports & interfaces
| PS/2 ports quantity |
2 |
| Serial ports quantity |
2 |
| Parallel ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Memory
| Maximum internal memory |
8 GB |
| Memory slots |
4 DIMM |
| Internal memory |
1 GB |
| Internal memory type |
DDR2-SDRAM |
Design
| Optical drive type |
DVD-ROM |
| Chassis type |
Tower (5U) |
Graphics
| Maximum graphics adapter memory |
16 MB |
Other features
| Hard disk controller |
Serial ATA |
| CD read speed |
48 x |
Networking
| Networking features |
Ethernet/Fast Ethernet/Gigabit Ethernet |
Additionally
| Graphics |
ES1000 |
| Processing die size |
111 mm² |
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

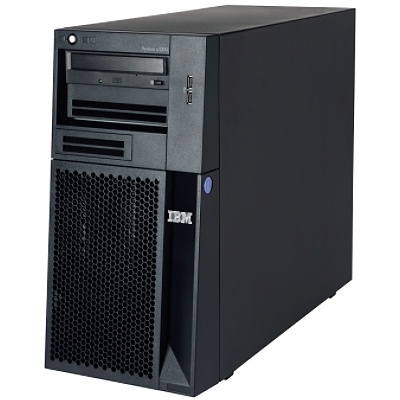

System x3200, Intel Xeon 3040 1.87GHz (1066MHz 2MB), 1024MB DDR2 SDRAM, 0GB Serial ATA, CD-ROM, Gigabit Ethernet, ATI ES1000 16MB
The IBM System x3200 can help lower your IT costs throughout its business lifecycle. The x3200 is not only affordable to purchase, but it’s also easy to manage and keep up to date.
Keep your business in business
With unprecedented system availability, the x3200 can help you maximize uptime for your file and print or network infrastructure applications. Select SATA, near-line SATA or Serial Attached SCSI hard disk drives (HDDs) depending on your reliability requirements. If a hard disk drive or power supply fails, the x3200 can stay up and running with redundant power supplies and hot-swap SATA and SAS HDDs.
Protect your data, your investment
Standard on select models, integrated hardware RAID-0 or -1 provides protection for your business-critical data. Optional upgrades to RAID-5 or tape backup solutions are also available.
Manage your growth
The x3200 helps minimize management costs for distributed or remote applications. It supports industry-standard, IPMI-based systems management and the IBM Remote Supervisor Adapter II for advanced hardware management—enabling your IT staff to do more with less.
