Memory
| Internal memory |
2 GB |
| Internal memory type |
DDR2-SDRAM |
| Maximum internal memory |
8 GB |
| Memory slots |
4 DIMM |
Processor
| Processor cores |
4 |
| CPU multiplier (bus/core ratio) |
8 |
| Conflict Free processor |
N |
| Physical Address Extension (PAE) |
Y |
| Processor cache type |
L3 |
| Physical Address Extension (PAE) |
32 bit |
| Thermal Monitoring Technologies |
Y |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Processor cache |
8 MB |
| Maximum number of SMP processors |
1 |
| Thermal Design Power (TDP) |
105 W |
| Processor lithography |
65 nm |
| Processor package size |
37.5 mm |
| Bus type |
FSB |
| ECC supported by processor |
N |
| Tcase |
62.2 °C |
| Processor frequency |
2.13 GHz |
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
N |
| Number of Processing Die Transistors |
582 M |
| Processor front side bus |
1066 MHz |
Processor special features
| Intel® Turbo Boost Technology |
N |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
28033 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
Other features
| CD read speed |
48 x |
| Hard disk controller |
SATA/SAS |
Graphics
| Maximum graphics adapter memory |
16 MB |
Ports & interfaces
| Parallel ports quantity |
1 |
| Serial ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
2 |
Networking
| Networking features |
Ethernet/Fast Ethernet/Gigabit Ethernet |
Storage
| Total storage capacity |
2000 GB |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |
| Graphics |
ES1000 |
| Processing die size |
286 mm² |

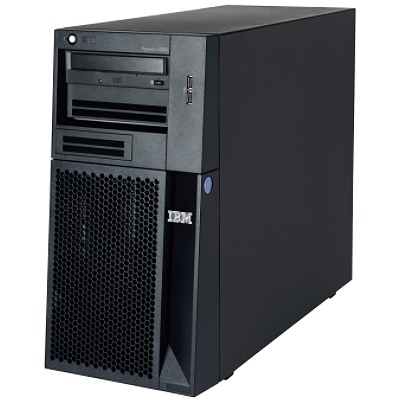

System x3200, 1x Quad-core Xeon X3210 2.13 GHz/1066 MHz (8 MB L2 cache), 2x 1 GB PC2-5300 CL5 ECC DDR2 SDRAM DIMM, 0x 0 GB HS SATA/SAS HD (open bay), CD-ROM, Gigabit Ethernet, 2x 430 W power supply, ATI ES1000 (16 MB)
The IBM System x3200 can help lower your IT costs throughout its business lifecycle. The x3200 is not only affordable to purchase, but it’s also easy to manage and keep up to date.
Keep your business in business
With unprecedented system availability, the x3200 can help you maximize uptime for your file and print or network infrastructure applications. Select SATA, near-line SATA or Serial Attached SCSI hard disk drives (HDDs) depending on your reliability requirements. If a hard disk drive or power supply fails, the x3200 can stay up and running with redundant power supplies and hot-swap SATA and SAS HDDs.
Protect your data, your investment
Standard on select models, integrated hardware RAID-0 or -1 provides protection for your business-critical data. Optional upgrades to RAID-5 or tape backup solutions are also available.
Manage your growth
The x3200 helps minimize management costs for distributed or remote applications. It supports industry-standard, IPMI-based systems management and the IBM Remote Supervisor Adapter II for advanced hardware management—enabling your IT staff to do more with less.
