Processor
| ECC supported by processor |
Y |
| Tcase |
76 °C |
| Maximum internal memory supported by processor |
144 GB |
| Processor frequency |
2 GHz |
| Processor system type |
DP |
| Processor operating modes |
64-bit |
| Embedded options available |
Y |
| FSB Parity |
N |
| Conflict Free processor |
N |
| Physical Address Extension (PAE) |
Y |
| Processor cores |
4 |
| CPU multiplier (bus/core ratio) |
15 |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
19.2 GB/s |
| Memory clock speeds supported by processor |
800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBF9 |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Thermal Design Power (TDP) |
80 W |
| Processor package size |
42.5 mm |
| Number of QPI links |
2 |
| Processor cache |
4 MB |
| Number of processors installed |
1 |
| Maximum number of SMP processors |
2 |
| Processor lithography |
45 nm |
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
| Stepping |
D0 |
Processor special features
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Cache |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
40711 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
Storage
| Hard drive interface |
Serial ATA |
| Maximum storage capacity |
2.4 TB |
| Hot-swap |
N |
Memory
| Internal memory |
4 GB |
| Maximum internal memory |
96 GB |
| Memory slots |
12 |
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1333 MHz |
| ECC |
Y |
Graphics
| Maximum graphics adapter memory |
16 MB |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| System bus data transfer rate |
4.8 GT/s |
| Graphics |
G200eV |
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |

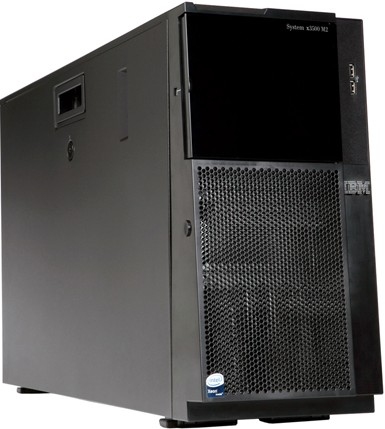

System x3400 M2, Intel Xeon E5504, 4096MB DDR3 RAM, SATA, Tower
Performance features, entry price
For growing businesses and branch offices that want high performance without the high price tag, the IBM® System x3400 M2 offers the availability and reliability you need at a price you can afford. Designed for flexibility and growth, this dual-socket server offers exceptional value that accommodates expanding business needs.
Expand your business, not your budget
You plan for growth, but when and how much can be difficult to project. The x3400 M2 offers flexible configuration options and easy migration through support for a wide range of technologies. Start with a single Intel® Xeon® four-core processor, and add a second to double your processing capability. Select the right combination of hard disk drive size, capacity and performance for today, and easily incorporate additional drives tomorrow.
Product features
- Configuration flexibility and support of legacy technologies for quick and easy migration, rollout, expansion and a stable investment;
- Enhanced availability with optional hot-swap hard disk drives and RAID support;
- Comprehensive systems management with integrated management module (IMM), optional remote presence key and IBM Systems Director;
- Dual-socket computing power optimized for up to eight total cores at lower power usage per core;
- Flexibility to use either high-performance Serial Attached SCSI (SAS) or low-cost Serial ATA hard disk drives.
