Processor
| ECC supported by processor |
N |
| Tcase |
66 °C |
| Processor frequency |
1.86 GHz |
| CPU multiplier (bus/core ratio) |
7 |
| Embedded options available |
N |
| FSB Parity |
N |
| Number of Processing Die Transistors |
410 M |
| Processor front side bus |
1066 MHz |
| Conflict Free processor |
N |
| Processor cache type |
L2 |
| Processor codename |
Wolfdale |
| Thermal Design Power (TDP) |
65 W |
| Processor package size |
37.5 mm |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Processor cache |
6 MB |
| Number of processors installed |
1 |
| Processor cores |
2 |
| Maximum number of SMP processors |
2 |
| Processor lithography |
45 nm |
| Stepping |
E0 |
| Processor operating modes |
64-bit |
| Bus type |
FSB |
Processor special features
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
33093 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
Memory
| Internal memory |
2 GB |
| ECC |
Y |
| Internal memory type |
DDR2-SDRAM |
| Maximum internal memory |
32 GB |
| Memory slots |
8 DIMM |
Graphics
| Maximum graphics adapter memory |
16 MB |
Design
| Chassis type |
Rack (1U) |
| Optical drive type |
DVD-ROM |
Storage
| Total storage capacity |
292 GB |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Graphics |
RN50 |
| Processing die size |
107 mm² |
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |

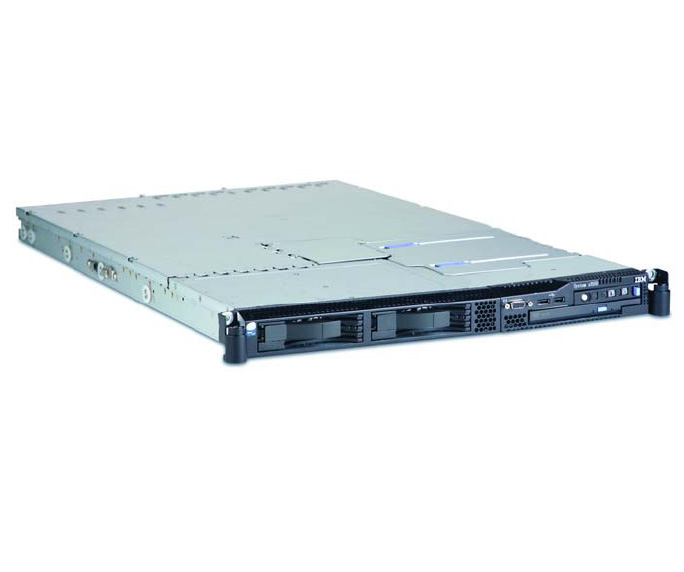

System x3550, 1x Xeon Dual-Core E5205 1.86 GHz/1066 MHz (6 MB L2), 2x 1 GB PC2-5300 667 MHz ECC Chipkill DDR2, 0 GB SAS HS 2.5" HD (open bay), CD-RW/DVD Combo, Dual Broadcom 5708 Gigabit Ethernet, ATI RN50 (16 MB), 1x 670 W HS
Optimised for speed
Designed for applications ranging from Web serving to workload consolidation and virtualization, the IBM System x3550 offers high-speed, dual-core processors with blazing 1333 MHz front-side bus. Optimised for exceptional application computing, the x3550 features a highly functional infrastructure that addresses more memory, lowers power consumption and provides dramatic systems performance increases.
Innovation comes standard
Standard integrated data protection with hardware RAID and 2.5" or 3.5" Serial Attached SCSI (SAS) hard disk drives (HDDs) keeps your data safe and readily available. Super-efficient network communication and hot-swap redundant power help keep your business humming at lower support costs.
