Processor special features
Intel FDI Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel vPro Technology |
N |
Intel Clear Video Technology for MID |
N |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Enhanced Halt State |
Y |
Intel Hyper-Threading Technology |
N |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Intel Dual Display Capable Technology |
N |
Intel Clear Video Technology |
N |
Intel 64 |
Y |
Intel® Insider™ |
N |
Intel® Quick Sync Video Technology |
N |
Processor ARK ID |
33080 |
Intel Virtualization Technology (VT-x) |
Y |
Intel® Turbo Boost Technology |
N |
Intel Trusted Execution Technology |
N |
Intel Flex Memory Access |
N |
Intel Fast Memory Access |
N |
Intel Rapid Storage Technology |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel Demand Based Switching |
Y |
Enhanced Intel SpeedStep Technology |
Y |
Storage
Hard drive interface |
Serial Attached SCSI (SAS) |
Maximum storage capacity |
0.292 TB |
Hot-swap |
Y |
Processor
Processor frequency |
2.33 GHz |
Stepping |
E0 |
Processor system type |
DP |
Processor operating modes |
64-bit |
Embedded options available |
N |
FSB Parity |
Y |
Number of Processing Die Transistors |
820 M |
Processor front side bus |
1333 MHz |
Conflict Free processor |
N |
Processor cache type |
L2 |
Processor code |
SLBBC |
Processor cores |
4 |
CPU multiplier (bus/core ratio) |
7 |
Processor package size |
37.5 mm |
Thermal Monitoring Technologies |
Y |
Idle States |
Y |
Execute Disable Bit |
Y |
Processor cache |
12 MB |
Number of processors installed |
1 |
Maximum number of SMP processors |
2 |
Thermal Design Power (TDP) |
80 W |
Processor lithography |
45 nm |
Bus type |
FSB |
ECC supported by processor |
N |
Tcase |
67 °C |
Ports & interfaces
PS/2 ports quantity |
2 |
Serial ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Memory
Maximum internal memory |
32 GB |
Memory slots |
8 DIMM |
Memory clock speed |
667 MHz |
Internal memory |
4 GB |
Internal memory type |
DDR2-SDRAM |
ECC |
Y |
Design
Chassis type |
Rack (1U) |
Optical drive type |
DVD-ROM |
Graphics
Maximum graphics adapter memory |
16 MB |
Other features
Hard disk controller |
ServeRAID 8k SAS |
Networking
Networking features |
Gigabit Ethernet |
Additionally
Processing die size |
214 mm² |
InTru™ 3D Technology |
N |
Ethernet LAN (RJ-45) ports quantity |
2 |
Intel AES New Instructions |
N |
Graphics |
RN50 |

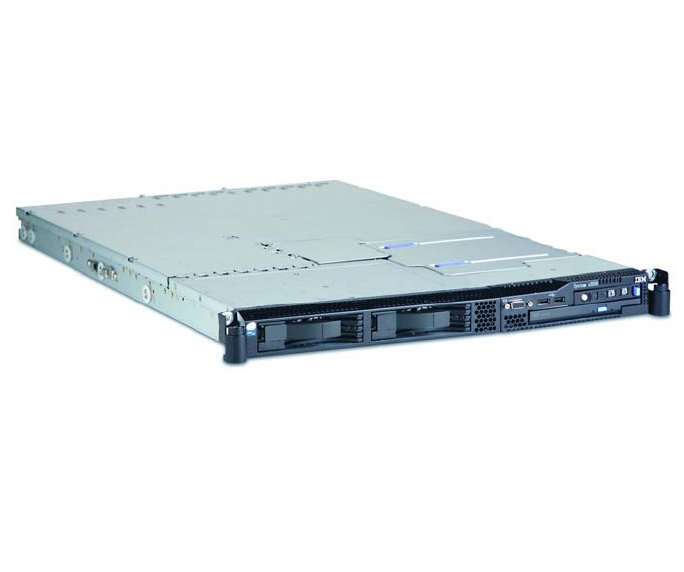

System x3550, 1x Quad-Core Intel Xeon Processor 2.33 GHz/1333 MHz (12 MB L2 cache), 4 GB PC2-5300 CL5 ECC DDR2 Chipkill FBDIMM, 0x 0 GB SAS HD (open bay), CD-RW/DVD Combo, ATI RN50 (16 MB), 2x Broadcom 5708 Gigabit Ethernet, 1x 670 W
Optimised for speed
Designed for applications ranging from Web serving to workload consolidation and virtualization, the IBM System x3550 offers high-speed, dual-core processors with blazing 1333 MHz front-side bus. Optimised for exceptional application computing, the x3550 features a highly functional infrastructure that addresses more memory, lowers power consumption and provides dramatic systems performance increases.
Innovation comes standard
Standard integrated data protection with hardware RAID and 2.5" or 3.5" Serial Attached SCSI (SAS) hard disk drives (HDDs) keeps your data safe and readily available. Super-efficient network communication and hot-swap redundant power help keep your business humming at lower support costs.
