Processor special features
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
34446 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
Processor
| Embedded options available |
N |
| FSB Parity |
Y |
| Number of Processing Die Transistors |
820 M |
| Processor front side bus |
1333 MHz |
| Conflict Free processor |
N |
| Processor cache type |
L2 |
| Processor code |
SLBBE |
| Thermal Monitoring Technologies |
Y |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Processor cache |
12 MB |
| Number of processors installed |
1 |
| Maximum number of SMP processors |
2 |
| Thermal Design Power (TDP) |
120 W |
| Processor lithography |
45 nm |
| Processor package size |
37.5 mm |
| Bus type |
FSB |
| ECC supported by processor |
N |
| Tcase |
63 °C |
| Processor frequency |
3 GHz |
| Stepping |
E0 |
| Processor operating modes |
64-bit |
| Processor cores |
4 |
| CPU multiplier (bus/core ratio) |
9 |
Memory
| ECC |
Y |
| Maximum internal memory |
32 GB |
| Memory slots |
8 DIMM |
| Internal memory |
2 GB |
| Internal memory type |
DDR2-SDRAM |
Graphics
| Maximum graphics adapter memory |
16 MB |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Storage
| Total storage capacity |
292 GB |
Design
| Chassis type |
Rack (1U) |
| Optical drive type |
DVD-ROM |
Additionally
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |
| Graphics |
RN50 |
| Processing die size |
214 mm² |

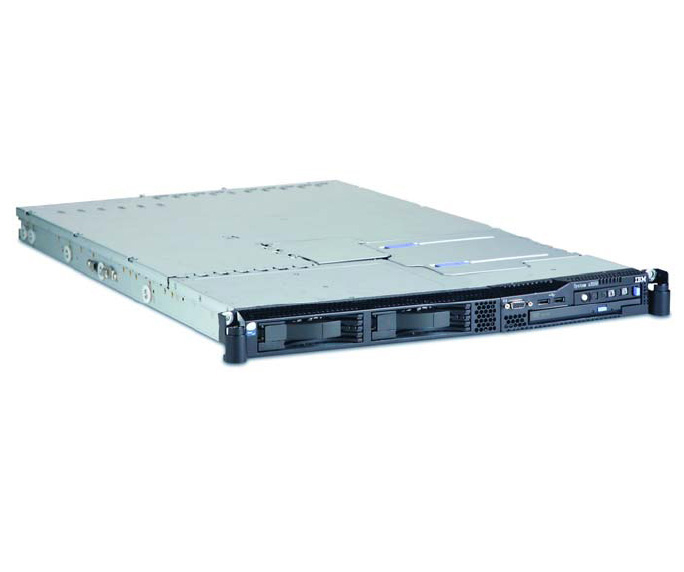

System x3550, 1x Quad-core Xeon X5450 3 GHz (12 MB L2 cache), 2x 1 GB PC2-5300 ECC Chipkill DDR2 FBDIMM, 0GB HD (open bay), CD-RW/DVD Combo, 2x Broadcom 5708 Gigabit Ethernet controller, ATI RN50 video (16 MB), 1x 670 W
Optimised for speed
Designed for applications ranging from Web serving to workload consolidation and virtualization, the IBM System x3550 offers high-speed, dual-core processors with blazing 1333 MHz front-side bus. Optimised for exceptional application computing, the x3550 features a highly functional infrastructure that addresses more memory, lowers power consumption and provides dramatic systems performance increases.
Innovation comes standard
Standard integrated data protection with hardware RAID and 2.5" or 3.5" Serial Attached SCSI (SAS) hard disk drives (HDDs) keeps your data safe and readily available. Super-efficient network communication and hot-swap redundant power help keep your business humming at lower support costs.
