Processor special features
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
40200 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Cache |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
Processor
| ECC supported by processor |
Y |
| Tcase |
72 °C |
| Maximum internal memory supported by processor |
144 GB |
| Processor frequency |
2.26 GHz |
| Stepping |
D0 |
| Memory clock speeds supported by processor |
1066, 800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBFD |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Number of QPI links |
2 |
| Processor boost frequency |
2.53 GHz |
| Processor cache |
8 MB |
| Number of processors installed |
1 |
| Processor cores |
4 |
| Maximum number of SMP processors |
2 |
| Thermal Design Power (TDP) |
80 W |
| CPU multiplier (bus/core ratio) |
17 |
| Processor lithography |
45 nm |
| Processor package size |
42.5 mm |
| Processor system type |
DP |
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
N |
| Number of Processing Die Transistors |
731 M |
| Conflict Free processor |
N |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
Storage
| Hard drive interface |
Serial Attached SCSI (SAS) |
| Maximum storage capacity |
1.8 TB |
| Total storage capacity |
292 GB |
| Number of hard drives installed |
2 |
| Hard drive size |
2.5 " |
| Hard drive capacity |
146 GB |
| Hot-swap |
Y |
Memory
| Maximum internal memory |
128 GB |
| Memory slots |
16 DIMM |
| Internal memory type |
DDR3-SDRAM |
| Internal memory |
6 GB |
Networking
| Network ready |
Y |
| Networking features |
Gigabit Ethernet |
Ports & interfaces
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
2 |
Power
| Number of power supply units |
1 |
| Power supply |
675 W |
Additionally
| Intel AES New Instructions |
N |
| System bus data transfer rate |
5.86 GT/s |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Processing die size |
263 mm² |

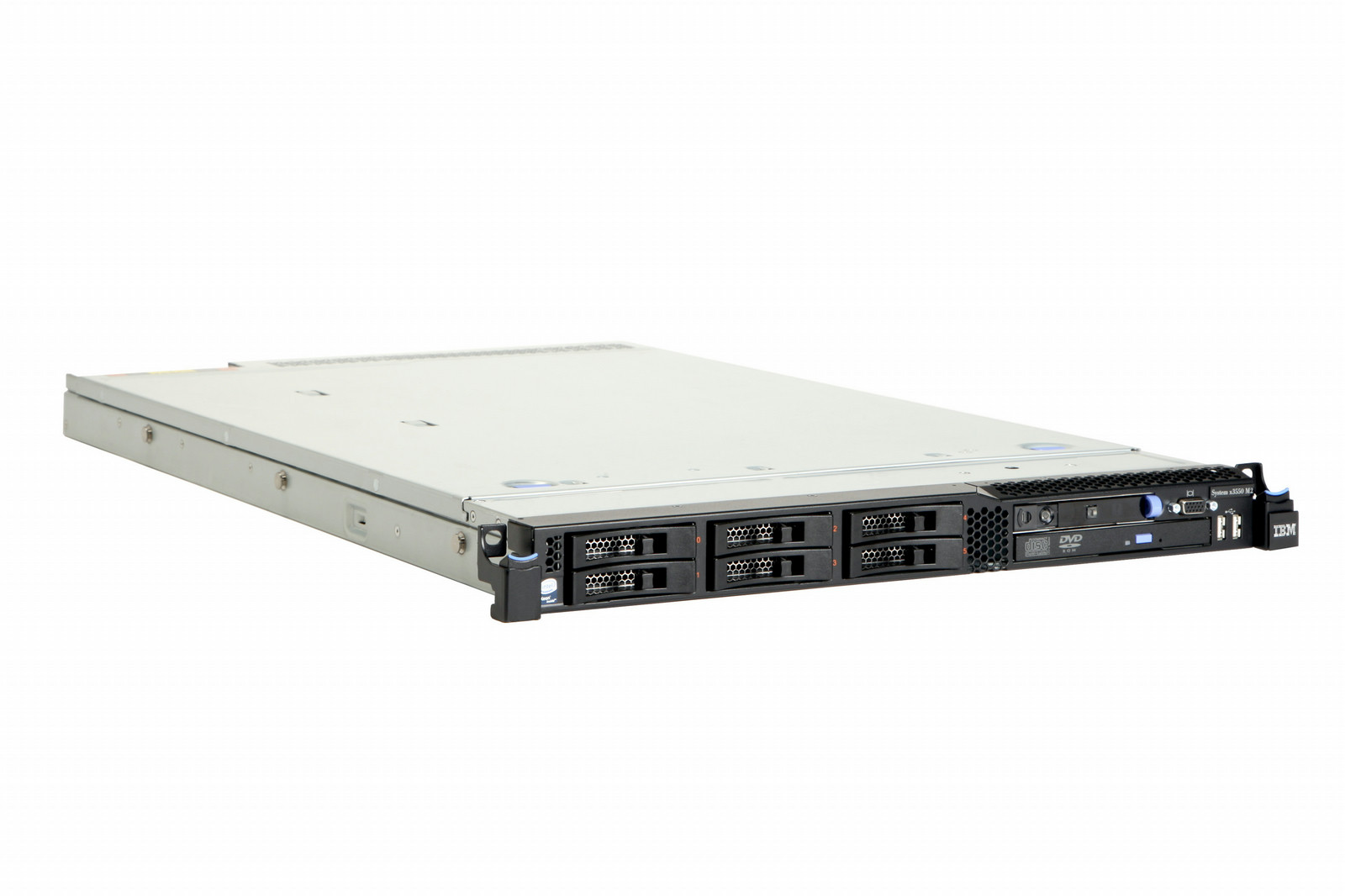

System x3550 M2, Xeon E5520, 2.26GHz, 8MB L2, 3x 2GB, 2x 146GB 10k 2.5", 2x PS, rack 1U
-Reduce cost with an energy-smart design that provides optimal quad-core computing performance per watt.
-Improve service with a highly flexible design that is easy to deploy, integrate and manage.
-Manage risk with resilient architectures and virtualized environments.
Energy-efficient profile
The IBM® System x3550 M2 offers robust, proven technology and a flexible, energy-smart design. Delivering quad-core computing on Intel® Xeon® 5500 Series processors with QuickPath Interconnect technology, this server delivers significant performance improvement per watt compared to previous generation servers by integrating low-wattage components for an energy-smart thermal profile.
Powerful systems management
This server offers feature-rich systems management capabilities from power management to proactive hardware monitoring. The Integrated Management Module (IMM) increases server availability by continuously monitoring your system and notifying you of potential system failures or changes. The Virtual Media key option provides remote presence capabilities without taking up a slot on the planar, while IBM Systems Director Active Energy Manager™ provides advanced power monitoring and notification.
Leadership virtualization
Designed to provide leadership virtualization, the x3550 M2 supports the VMware ESXi 3.5 embedded hypervisor, the industry-leading solution for virtualization. In addition, the x3550 M2 provides exceptional memory capacity per core, enabling you to implement virtualization efficiently and cost-effectively.
