Processor special features
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
37111 |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
Processor
| ECC supported by processor |
Y |
| Tcase |
75 °C |
| Maximum internal memory supported by processor |
144 GB |
| Processor frequency |
2.93 GHz |
| Stepping |
D0 |
| Processor system type |
DP |
| Processor operating modes |
64-bit |
| Processor cores |
4 |
| Embedded options available |
N |
| Processor cache type |
Smart Cache |
| Processor code |
SLBF3 |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Execute Disable Bit |
Y |
| Number of QPI links |
2 |
| Processor boost frequency |
3.33 GHz |
| Processor cache |
8 MB |
| Number of processors installed |
1 |
| Maximum number of SMP processors |
2 |
| Thermal Design Power (TDP) |
95 W |
| CPU multiplier (bus/core ratio) |
22 |
| Processor lithography |
45 nm |
| Processor package size |
42.5 mm |
| FSB Parity |
N |
| Number of Processing Die Transistors |
731 M |
| Conflict Free processor |
N |
| Memory bandwidth supported by processor (max) |
32 GB/s |
| Bus type |
QPI |
Storage
| Hard drive interface |
Serial Attached SCSI (SAS) |
| Maximum storage capacity |
1.8 TB |
| Hard drive size |
2.5 " |
| Hot-swap |
Y |
Memory
| Maximum internal memory |
128 GB |
| Memory slots |
16 |
| Internal memory |
4 GB |
| Memory clock speed |
1333 MHz |
| ECC |
Y |
| Internal memory type |
DDR3-SDRAM |
Graphics
| Maximum graphics adapter memory |
16 MB |
Design
| Chassis type |
Rack (1U) |
| Optical drive type |
DVD-ROM |
Ports & interfaces
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
2 |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Intel AES New Instructions |
N |
| System bus data transfer rate |
6.4 GT/s |
| Graphics |
G200eV |
| Processing die size |
263 mm² |
| InTru™ 3D Technology |
N |

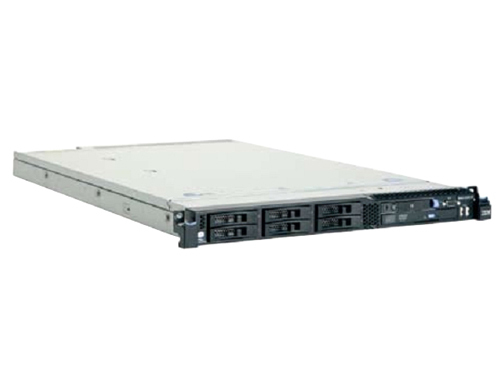

System x3550 M2, Intel Xeon X5570, 4096MB DDR3 RAM, SAS, CD-RW/DVD-ROM Combo, Rack 1U
Energy-efficient profile
The IBM System x3550 M2 offers robust, proven technology and a flexible, energy-smart design. Delivering quad-core computing on Intel® Xeon® 5500 Series processors with QuickPath Interconnect technology, this server delivers significant performance improvement per watt compared to previous generation servers by integrating low-wattage components for an energy-smart thermal profile.
Powerful systems management
This server offers feature-rich systems management capabilities from power management to proactive hardware monitoring. The Integrated Management Module (IMM) increases server availability by continuously monitoring your system and notifying you of potential system failures or changes. The Virtual Media key option provides remote presence capabilities without taking up a slot on the planar, while IBM Systems Director Active Energy Manager™ provides advanced power monitoring and notification.
Leadership virtualization
Designed to provide leadership virtualization, the x3550 M2 supports the VMware ESXi 3.5 embedded hypervisor, the industry-leading solution for virtualization. In addition, the x3550 M2 provides exceptional memory capacity per core, enabling you to implement virtualization efficiently and cost-effectively.
Product features
- Outstanding power-optimized performance which can double compute capability of previous generation 2-socket servers;
- Help lower operational costs with innovative energy- smart 1U design;
- Improve service with a highly scalable, flexible design that is easy to deploy, integrate, service and manage.
- Manage risk with resilient architectures and virtualized environments.
