Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
Power
| Power supply |
675 W |
| Number of power supply units |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Processor
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
| Supported instruction sets |
SSE4.2 |
| ECC supported by processor |
Y |
| Tcase |
81.3 °C |
| Maximum internal memory supported by processor |
288 GB |
| Processor frequency |
2.66 GHz |
| Stepping |
B1 |
| Processor system type |
DP |
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
N |
| Conflict Free processor |
N |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
32 GB/s |
| Memory clock speeds supported by processor |
1333, 1066, 800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBV3 |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
Y |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Number of QPI links |
2 |
| Processor boost frequency |
3.06 GHz |
| Processor cache |
12 MB |
| Number of processors installed |
1 |
| Processor cores |
6 |
| Maximum number of SMP processors |
2 |
| Thermal Design Power (TDP) |
95 W |
| CPU multiplier (bus/core ratio) |
20 |
| Processor lithography |
32 nm |
| Processor package size |
42.5 mm |
Processor special features
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
47922 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
Y |
Design
| Chassis type |
Rack (2U) |
| Optical drive type |
N |
Storage
| Hard drive interface |
Serial Attached SCSI (SAS) |
| RAID support |
Y |
| Maximum storage capacity |
16 TB |
| Hot-swap |
Y |
| Hard drive size |
3.5 " |
Memory
| Maximum internal memory |
96 GB |
| Memory slots |
12x DIMM |
| Internal memory |
12 GB |
| Memory clock speed |
1333 MHz |
| ECC |
Y |
Graphics
| Maximum graphics adapter memory |
16 MB |
Additionally
| Intel AES New Instructions |
Y |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
6.4 GT/s |
| Graphics |
G200eV |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
1x Six-Core Intel Xeon X5650 (2.66GHz, 12MBL3), 3x 4GB, 2Rx4, 1.35V PC3L-10600 CL9 ECC DDR3 1333MHz LP RDIMM, IBM 0 GB 0 K 6Gbps SAS 3.5" Hot-Swap HDD (Open bay), 2 x 1 GB Ethernet controller, ServeRAID M5015 + Battery, SVGA video, 675W (redundant)
- Provides a value alternative to traditional enterprise offerings with cost-optimized performance and functionality
- Delivers ultimate reliability and simplified management with IBM-backed service, support and tools
- Offers customizable design and flexible configurations for affordable growth
A cost-focused alternative

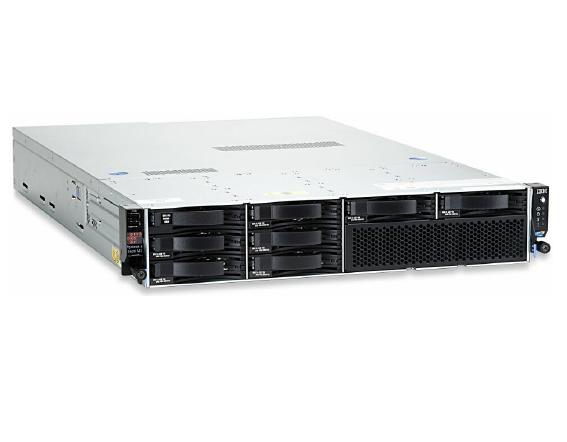

IBM System x3620 M3 gives growing businesses an affordable alternative to traditional enterprise server offerings. Built on the latest Intel® Xeon® technology, the x3620 M3 helps keep costs down by providing energy efficiency, integrated software RAID and support for up to eight high-capacity, low-cost 3.5" hard disk drives.
IBM designed, tested and certified
Reliable and easy to manage, the x3620 M3 is backed by IBM service and support. Embedded RAID and an optional 6 Gbps adapter can protect your data, while optional redundant power and cooling promote uptime. Access to IBM Systems Director, ToolsCenter and IBM Integrated Managed Module (IMM) capabilities offer proactive support to help maintain availability.
