Processor
| Memory channels supported by processor |
Triple |
| Tcase |
76 °C |
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
| ECC supported by processor |
Y |
| Maximum internal memory supported by processor |
144 GB |
| Processor frequency |
2.13 GHz |
| Stepping |
D0 |
| Processor system type |
DP |
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
N |
| Conflict Free processor |
N |
| Physical Address Extension (PAE) |
Y |
| Memory bandwidth supported by processor (max) |
19.2 GB/s |
| Memory clock speeds supported by processor |
800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBF8 |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Processor cores |
4 |
| Thermal Design Power (TDP) |
80 W |
| CPU multiplier (bus/core ratio) |
16 |
| Processor package size |
42.5 mm |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Number of QPI links |
2 |
| Processor cache |
4 MB |
| Number of processors installed |
1 |
| Maximum number of SMP processors |
2 |
| Processor lithography |
45 nm |
Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
Power
| Power supply |
675 W |
| Number of power supply units |
1 |
Networking
| Networking features |
Gigabit Ethernet |
Processor special features
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Cache |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
37096 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
Storage
| Hard drive interface |
Serial Attached SCSI (SAS), Serial ATA |
| RAID support |
Y |
| Hot-swap |
Y |
| Hard drive size |
2.5 " |
Design
| Chassis type |
Rack (2U) |
| Optical drive type |
N |
Memory
| Maximum internal memory |
144 GB |
| Memory slots |
18 DIMM |
| Memory clock speed |
1333 MHz |
| Internal memory |
4 GB |
Graphics
| Maximum graphics adapter memory |
16 MB |
Additionally
| Intel AES New Instructions |
N |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
4.8 GT/s |
| Ethernet LAN (RJ-45) ports quantity |
3 |
| Graphics |
G200eV |
| InTru™ 3D Technology |
N |
1x Quad-Core Intel Xeon E5506 2.13 GHz (4 MB L3 cache), 1x 4 GB PC3-10600 DDR3-1333 LP DIMM, 0x 0 GB 2.5" SAS/SATA HD (open bay), Integrated Management processor, 2x Broadcom 5709 Gigabit Ethernet, Matrox G200 video, 1x 675 W
- Improve cost-effectiveness with higher performance per watt
- Simplify management and serviceability with flexible design
- Manage risk with resilient architectures and virtualized environments
Packed with innovation

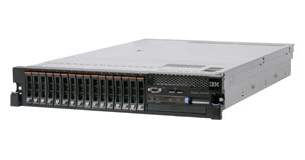

The IBM System x3650 M3 provides outstanding performance for your mission-critical applications. Its energy-efficient design supports more cores, memory and data capacity in a scalable 2U package that’s easy to service and manage. With more computing power per watt and the latest Intel® Xeon® processors, you can reduce costs while maintaining speed and availability.
Simplify management and serviceability
The x3650 M3 offers a flexible, scalable design and simple upgrade path to 16 HDDs or SSDs, and 192 GB of memory. Comprehensive systems management tools such as advanced diagnostics, a cable management arm and the ability to control resources from a single point make it easy to deploy, integrate, service and manage.
