Data transmission
Switching capacity |
384 Gbit/s |
Design
Form factor |
1U |
Rack mounting |
Y |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
N |
Ports & interfaces
SFP module slots quantity |
24 |
System Networking SAN24B-5 - 24-Ports, 384 Gbps, 1U, 7.82kg, Black
- Gain flexibility, simplicity and enterprise-class functionality in a 24-port, 1U form factor, entry-level switch
- Scale up to 24 ports using ports-on-demand capabilities
- Simplify management with Fabric Vision technology, which helps reduce operational costs and optimize application performance
- Maximize resiliency with nondisruptive software upgrades and redundant power supply
- Help boost performance with dynamic fabric provisioning, critical monitoring and advanced diagnostics, including ClearLink diagnostic technology (D_Ports)
- Leverage dual functionality as either a full-fabric SAN switch or an N_Port ID virtualization (NPIV) gateway
- Gain capabilities for advanced monitoring, diagnostics, reliability, availability, serviceability and redundancy
- Help ensure early problem detection and recovery with critical diagnostics and monitoring
- Achieve a comprehensive end-to-end view of the entire fabric with non-intrusive and nondisruptive monitoring on every port

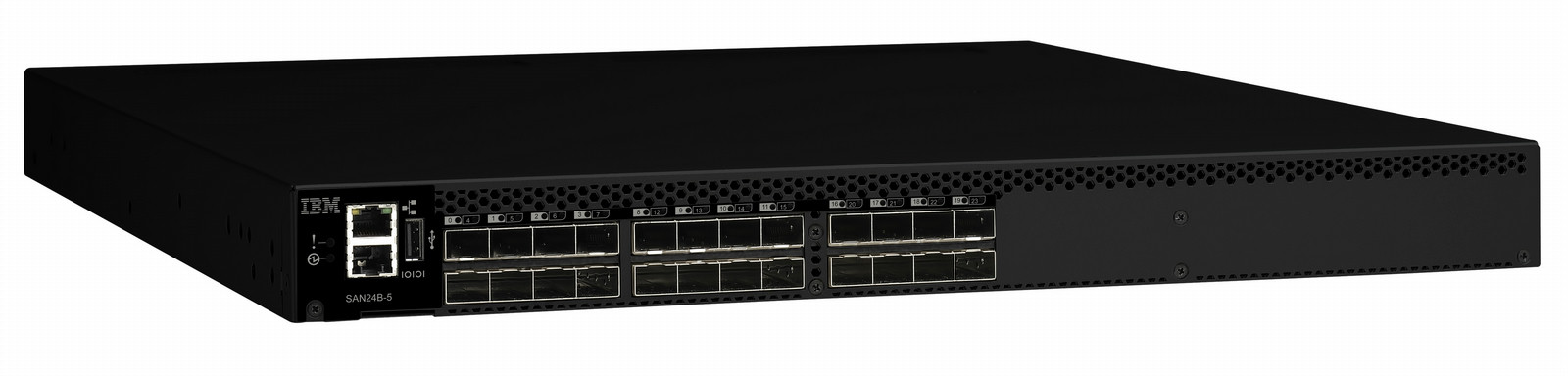

The IBM® System Networking SAN24B-5 switch is designed to provide outstanding price to performance value, combining flexibility, simplicity, Gen 5 Fibre Channel technology and enterprise-class functionality in an entry-level switch. SAN24B-5 is configurable in 12 or 24 ports and supports 2, 4, 8 or 16 Gbps speeds in an efficiently designed 1U form factor. The base unit includes one (249824G/2498-X24) or two (2498-F24) integrated power supplies and fans. A second power supply provides additional redundancy for increased resiliency.
SAN24B-5 provides a critical building block for today’s highly virtualized, private cloud storage environments. It can simplify server virtualization and virtual desktop infrastructure management while meeting the high-throughput demands of solid-state disks. It can also help minimize downtime in mission-critical environments by delivering high reliability, availability and serviceability.
