Storage
| Maximum supported storage capacity |
12 TB |
| Storage partitions |
32 |
| Hard drive speed |
15000 RPM |
| RAID levels |
1, 3, 5, 6, 10 |
Power
| Power consumption (typical) |
60 W |
| Redundant power supply (RPS) support |
Y |
Design
| Internal |
Y |
| LED indicators |
Y |
| Chassis type |
Rack (2U) |
Other features
| Dimensions (WxDxH) |
550 x 447 x 87 mm |
Packaging content
| Bundled software |
IBM System Storage DS3000 Storage Manager |
Operational conditions
| Storage temperature (T-T) |
10 - 50 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Non-operating altitude |
0 - 3000 m |
| Operating altitude |
-30.5 - 3000 m |
Performance
| Supported network protocols |
iSCSI |
Additionally
| Operating temperature range (T-T) |
10 - 35 °C |

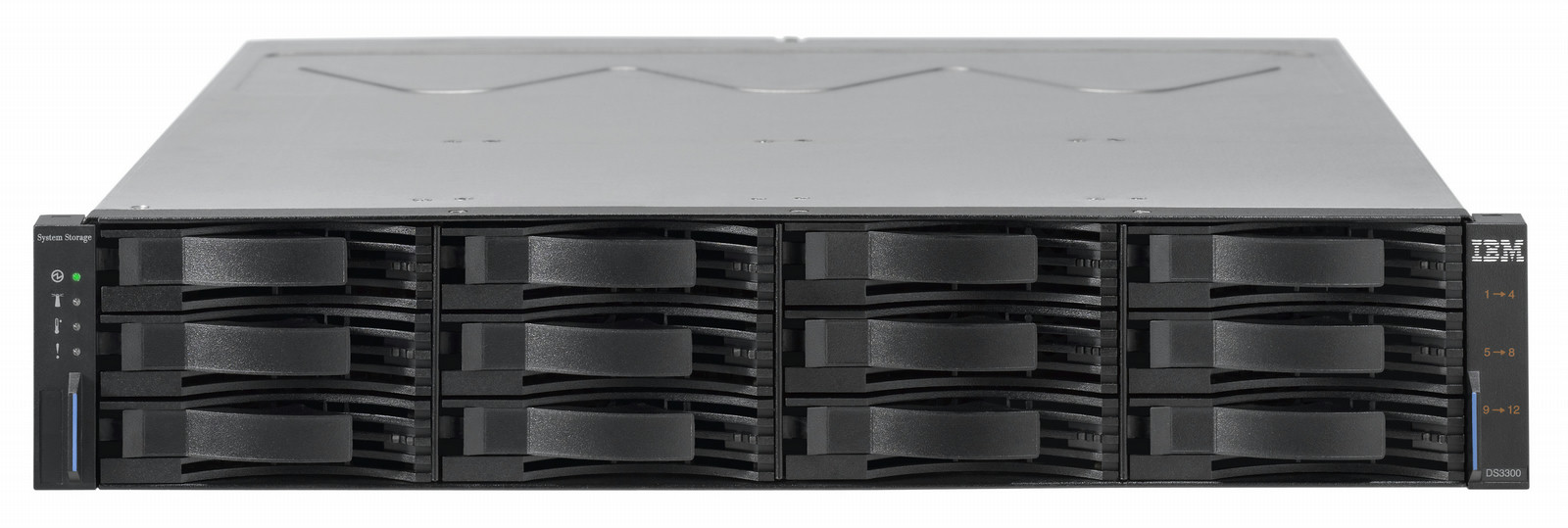

System Storage DS3300 Dual Controller
-Two 1 Gigabits per second (Gbps) SCSI over IP (iSCSI) host connections per controller.
-One 3 Gbps Serial Attached SCSI (SAS) drive interface for capacity expansion per controller.
-Affordable, reliable IP networked-attached storage.
-Combination of 12 SAS or Serial Advanced Technology Attachment (SATA) 3.5" drives per enclosure.
-Scalable to 5.4 TB of storage capacity with 450 GB hot-swappable SAS disks or 12.0 TB with 1.0 TB hot-swappable SATA disks in the first enclosure.
-Expandable by attaching up to three EXP3000s for a total of 21.6 TB of storage capacity with 450 GB SAS or up to 48.0 TB with 1.0 TB SATA.
-Solution for IBM System x, IBM BladeCenter and select third-party servers.
-Telco model supports -48 V DC power supplies.
Network Equipment Building System (NEBS) and ETSI compliance for AC and DC models.
With the proliferation of servers and the influx of data growth in today’s IT environments, organisations from a small-to-medium business (SMB) to the enterprise understand the value that networking plays in managing applications and business data. Today, the connectivity of storage devices must enable substantially higher scalability, availability and manageability than is possible with direct attached storage (DAS). To use data to its fullest extent, it must be accessible to those who need it. Consolidating data by means of a network is the best way to achieve this.
IBM expertise in external storage system development was the intellectual groundwork for the IBM System Storage DS3300 Express – providing cutting-edge technology and high reliability. The DS3300 is designed to meet the availability and consolidation needs for a wide range of users – from the entry-level SMB to an enterprise’s remote site or departments. The DS3300 provides organisations an affordable, reliable and scalable storage solution that takes advantage of their current IP infrastructure equipment and in-house expertise.
