Design
| Rack capacity |
2U |
| Form factor |
Rackmount |
Power
| Input operation voltage (max) |
145 V |
| Input operation voltage (min) |
84 V |
| Power supply input frequency |
50/60 Hz |
| Surge energy rating |
1200 J |
| Output power capacity |
1920 VA |
| Output operation voltage (min) |
92 V |
| Output operation voltage (max) |
132 V |
| Output power |
1920 W |
Ports & interfaces
| AC outlet types |
C13 coupler, C19 coupler, NEMA 5–15R |
| Power plug |
C20 coupler |
| AC outlets quantity |
10 AC outlet(s) |
Other features
| Operating temperature (T-T) |
32 - 104 °F |
| Nominal input voltage |
100-120 V |
| Nominal output voltage |
100-120 V |
Battery
| Battery technology |
Sealed Lead Acid (VRLA) |
| Hot-swap battery |
Y |
| Battery recharge time |
4 h |
| Typical backup time at half load |
14 min |
| Typical backup time at full load |
5 min |
1920VA, 1920W, LCD, (100/120V), 1200J, 31000g, 2U Rack, Black
Highlights
- Provides up to 2200 VA/1920 W in only 2U of rack space
- A 95 percent or greater efficiency rating helps reduce energy usage and costs
- Intuitive, customizable LCD display in nine languages and bundled intelligent IBM UPS Manager software enhance control and manageability
- IPv6 compliance for future proofing and real-time clock for error logging
- Integrates with IBM Systems Director Active Energy Manager™
In today's high-availability server environments, unplanned power outages or line quality irregularities can have a considerable financial impact on both small and medium and large enterprise businesses. Selecting the right Uninterruptible Power Supply (UPS) can efficiently, reliably and affordably help protect against these costly incidents.

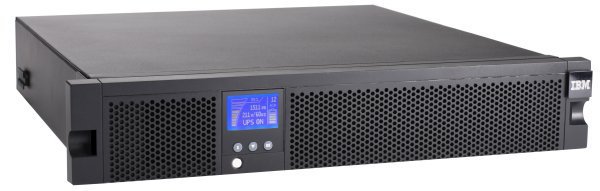

The IBM 2200 VA LCD 2U Rack UPS provides smart energy management and the highest level power protection that today's IT infrastructures require. Delivering 1920 watts of power in only 2U of rack space, the IBM 2200 Rack UPS optimizes power protection in high-performance environments. With an efficiency rating of 95 percent or greater, the UPS helps reduce energy usage and cooling costs, improve energy management, and optimize workload performance and availability for IBM System x® and BladeCenter® server applications.
Product features
- High-efficiency protection delivering more real power (Watts) in space-saving design.
- Nine language graphical Liquid Crystal Display (LCD), which provides management and monitoring capabilities.
- Hot-swappable batteries for maximum uptime, availability, and ease of maintenance.
- Standard intelligent IBM UPS Manager software to monitor, manage and to gracefully shut down the connected load in the event of a power failure.
- Optional Network Management Card (NMC) for enhanced UPS monitoring and control.
- Optional external battery module for scalable runtime requirements.
- Optional Environmental Monitoring Probe for thermal management requirements.
