Design
| Rack capacity |
4U |
| Form factor |
Rackmount |
Power
| Input operation voltage (max) |
255 V |
| Input operation voltage (min) |
155 V |
| Efficiency |
95% |
| Power supply input frequency |
50/60 Hz |
| Surge energy rating |
1300 J |
| Output power capacity |
6000 VA |
| Output operation voltage (min) |
184 V |
| Output operation voltage (max) |
228 V |
| Output power |
5600 W |
Ports & interfaces
| AC outlet types |
C19 coupler, NEMA L6-30R |
| AC outlets quantity |
6 AC outlet(s) |
Other features
| Operating temperature (T-T) |
32 - 104 °F |
| Nominal input voltage |
208 V |
| Nominal output voltage |
208 V |
Battery
| Battery technology |
Sealed Lead Acid (VRLA) |
| Hot-swap battery |
Y |
| Battery recharge time |
4 h |
| Typical backup time at half load |
14 min |
| Typical backup time at full load |
5 min |
6000VA/5600W, 200-208V, 14/5min, LCD, 1300J, USB, RS-232, 72000g, Rack 4U, Black
Highlights
- Provides up to 6000 VA/5600 W in only 4U of rack space
- A 95 percent or greater efficiency rating helps reduce energy usage and costs
- Intuitive, customizable LCD display in nine languages and bundled intelligent IBM UPS Manager software enhance control and manageability
- IPv6 compliance for future proofing and real-time clock for error logging
- Integrates with IBM Systems Director Active Energy Manager™
In today’s high-availability server environments, unplanned power outages or line quality irregularities can have a considerable financial impact on small, medium and large enterprises alike. Selecting the right Uninterruptible Power Supply (UPS) can efficiently, reliably and affordably help protect against these costly incidents.

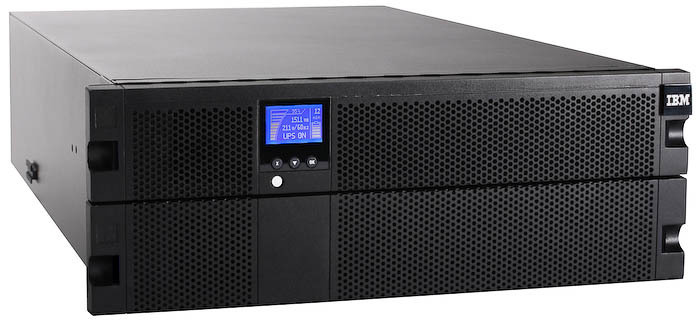

The IBM 6000 VA LCD 4U Rack UPS provides smart energy management and the high-level power protection that today’s IT infrastructures require.
Delivering up to 5600 watts of power in 4U of rack space, this 6000 VA Rack UPS optimizes power protection and is designed for high-efficiency operation. This can help reduce energy usage and cooling costs, improve energy management and optimize workload performance and availability for IBM System x® and BladeCenter® server environments.
Product features
- High-efficiency protection, delivering more real power (Watts) in space-saving design.
- Nine language graphical Liquid Crystal Display (LCD), which provides intuitive at the rack management and monitoring capabilities.
- Hot-swappable batteries for maximum uptime, availability, and ease of maintenance.
- Standard intelligent IBM UPS Manager software to monitor, manage and to gracefully shut down the connected load in the event of a power failure.
- Advanced Battery Management (ABM) technology significantly extends battery service life and optimizes recharge time.
- Load segments allow for individual control of receptacle groups.
- Optional Network Management Card (NMC) for enhanced UPS monitoring and control.
- Optional external battery module for scalable runtime requirements.
- Optional Environmental Monitoring Probe for thermal management requirements.
