Other features
| Mac compatibility |
N |
| Networking features |
Fast Ethernet |
Power
| Maximum current |
25 A |
| Output power capacity |
5000 VA |
| Output power |
4500 W |
Operational conditions
| Operating altitude |
0 - 3000 m |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

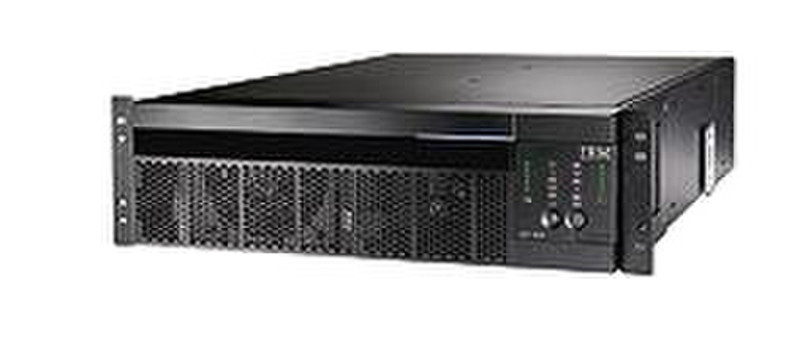

UPS5000 HV, 4.5 kW, 5000 VA, 26 A max., 3U, 48.26 cm (19 ")
The UPS5000 HV packs 4500W of power into a space-efficient 3U form factor. This provides optimal rack density to power and protect your mission critical System x and Blade center environments without taking up valuable real estate. Double Conversion UPS technology provides maximum protection from potential power input problems. This leads to higher availability and less problems that threaten data and equipment. The UPS5000 provides the benefits of IBM's renowned service and worldwide support, plus an industry-leading set of innovations and features that are available exclusively from IBM.
- High efficiency 3U 5KVA (4.5 kW) UPS for increased rack power density
- Advanced technology Double Conversion operation provides protection from four more power failures than typical interactive UPS technology
- Bimodal operation provides 97% efficiency when Double Conversion protection is not required
- Hot swap battery capability increases availability
- Optional Online Battery Packs (OBPs) for scalable runtime requirements of up to 75 minutes with four OBPs
- Eight C13 and two C19 receptacles with 20A circuit breaker protection
- A suite of easy-to-use management tools
- Network Management Card provides standard serial and network communications as wells as connections for environmental management
- Emergency Power Off option to remotely power off UPS unit to prevent battery operation during power failure
- Three year limited warranty
