Scanning
| Sensor type |
CCD |
| Working distance |
20 mm |
| Decoding standards |
UPC/EAN/JAN & 2/5, Code 39, Code 39 ASCII, Code 11, Matrix 25, Code 128, Code 93, Interleave 25, Industrial 25, Codabar/MW7, MSI/PLESSEY, China Postage, Code2 of 6, LCD25, Telepen, GS1 DataBar - RSS |
| Maximum scan width |
80 mm |
| Scan speed |
50 sec/page |
Performance
| Built-in processor |
N |
| Light levels (direct sunlight) |
0 - 3.000 lx |
Power
| Power consumption |
130 mA |
| Input voltage |
5 V |

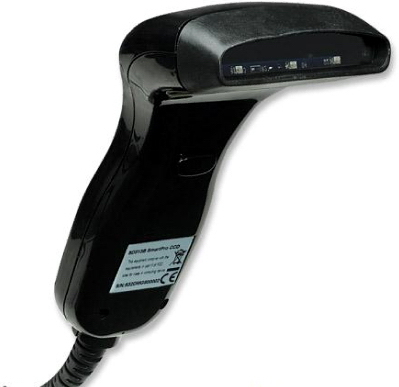

Contact CCD Barcode Scanner
The MANHATTAN® CCD Contact Barcode Scanners deliver high-quality scanning for a wide
range of data collection functions to help improve routine transactions, automate paper-based
processes and increase productivity. The CCD (charged-coupled device) scan engine features
no moving parts for years of reliable service reading popular barcodes including UPC, EAN
and GS1 DataBar. Easy to implement and simple to use, a built-in keyboard wedge decoder
sends scanned data to an active application where it appears as if it was manually typed or
directly keyed into the computer. Its versatile switchable USB or PS/2 cable interface integrates
with most PCs without an external power supply. With a scan rate of 50 scans per second
and an accurate read range of up to 20 mm (0.78 in.), this model offers a practical daily
scanning solution for point-of-sale, shipping, warehousing, office and industrial applications
to minimize manual data entry, speed transactions and reduce errors.
