Display
| Separate H/V sync |
Y |
| Display diagonal |
27 " |
| Vertical scan range |
55 - 75 Hz |
| Aspect ratio |
16:9 |
| Touchscreen technology |
Projected capacitive system |
| Contrast ratio (dynamic) |
12000000:1 |
| Response time |
5 ms |
| Contrast ratio (typical) |
3000:1 |
| Display resolution |
1920 x 1080 pixels |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
| Pixel pitch |
0.311 x 0.311 mm |
| Display viewable area HxV |
597.6 x 336.15 mm |
| Display brightness |
300 cd/m² |
| Full HD |
Y |
| Display technology |
AMVA+ |
| Display type |
LED |
Ports & interfaces
| Cables included |
AC, AUX, DVI, USB |
| PC Audio in |
Y |
| DVI-D ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Performance
| Mobile High-Definition Link (MHL) |
Y |
| Number of speakers |
2 |
| Built-in microphone |
Y |
| Number of simultaneous touchpoints (Windows 7) |
10 |
| Number of simultaneous touchpoints |
10 |
| RMS rated power |
4 W |
| Number of OSD languages |
9 |
| Touch technology |
Multi-touch |
| Built-in camera |
Y |
| Built-in speaker(s) |
Y |
| On Screen Display (OSD) languages |
CHI (SIMPL), CHI (TR), DEU, ENG, FRE, JPN, POL, RUS |
Power
| Power consumption (typical) |
36 W |
| Power management |
Y |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
Ergonomics
| VESA mounting |
Y |
| Cable lock slot |
Y |
| VESA mounting interfaces |
100 x 100 mm |
| Tilt adjustment |
Y |
| LED indicators |
Y |
| Wall mountable |
Y |
| Tilt angle |
-15 - 70 ° |
Operational conditions
| Operating relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
5 - 85% |
Weight & dimensions
| Depth |
50 mm |
| Weight |
8200 g |
| Width |
672 mm |
| Height |
419 mm |
Certificates
| Certification |
CE, TÜV-Bauart, VCCI-B, PSE, CU |
Additionally
| Display scan frequency (horizontal) |
24 - 80 kHz |
| Display number of colors |
16.78 million colours |
| Display diagonal |
68.6 cm |
| Energy efficiency compliance |
B |
| Operating temperature range (T-T) |
5 - 35 °C |

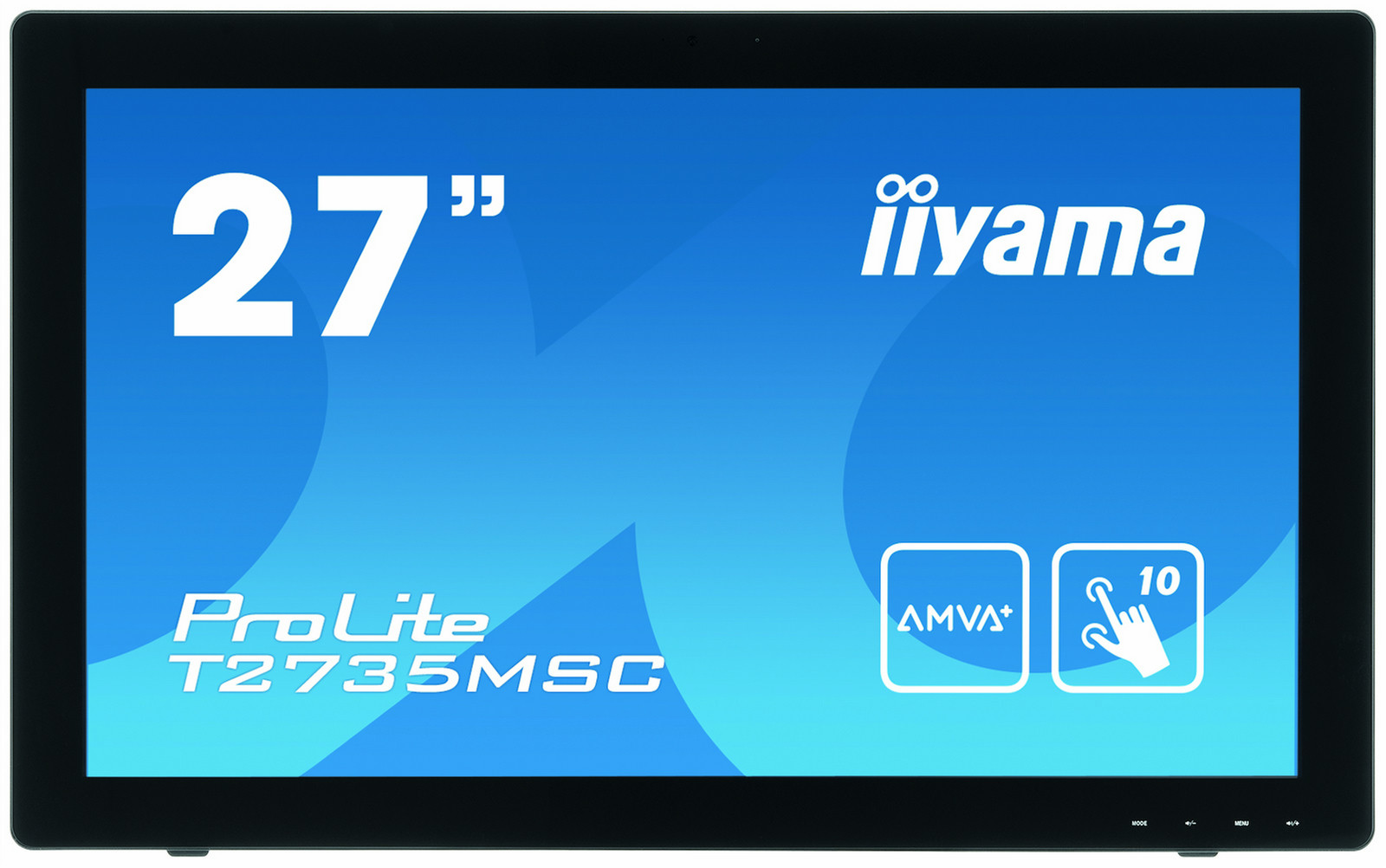

ProLite T2735MSC-B2 - 27", AMVA+, 3000:1, 255 cd/m², 0.311 x 0.311, 5 ms
With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite T2735MSC delivers seamless and accurate touch response. Featuring AMVA+ LED-backlit LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it an excellent choice for a vast array of demanding interactive applications. Users can benefit from its hinged stand allowing the monitor to lay down completely flat for use as a giant tablet. The T2735MSC comes equipped with several video inputs and a USB 3.0 HUB as well as stereo speakers delivering good quality sound. An ideal screen for Interactive Digital Signage, InStore Retail, Gaming and Interactive Presentations purposes.
