Performance
| Linux operating systems supported |
Y |
| Number of simultaneous touchpoints (Windows 7) |
10 |
| Number of OSD languages |
8 |
| Mac operating systems supported |
Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Built-in camera |
N |
| Built-in microphone |
N |
| Touch technology |
Multi-touch |
Ports & interfaces
| DVI-D ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Display
| Touchscreen technology |
Projected capacitive system |
| Color gamut |
90% |
| LED backlight |
Y |
| Display type |
LED |
| Separate H/V sync |
Y |
| Vertical scan range |
56 - 75 Hz |
Ergonomics
| Cable lock slot |
Y |
| Wall mountable |
Y |
Power
| AC adapter output voltage |
12 V |
| Power supply type |
DC |
Additionally
| Display scan frequency (horizontal) |
31.4 - 80 kHz |
38.1 cm (15 ") TN LED, Capacitive, Multitouch, 1024 x 768, 5 : 4, 5 ms, 1000:1, 350 cd/m², 170°/ 160°, Black

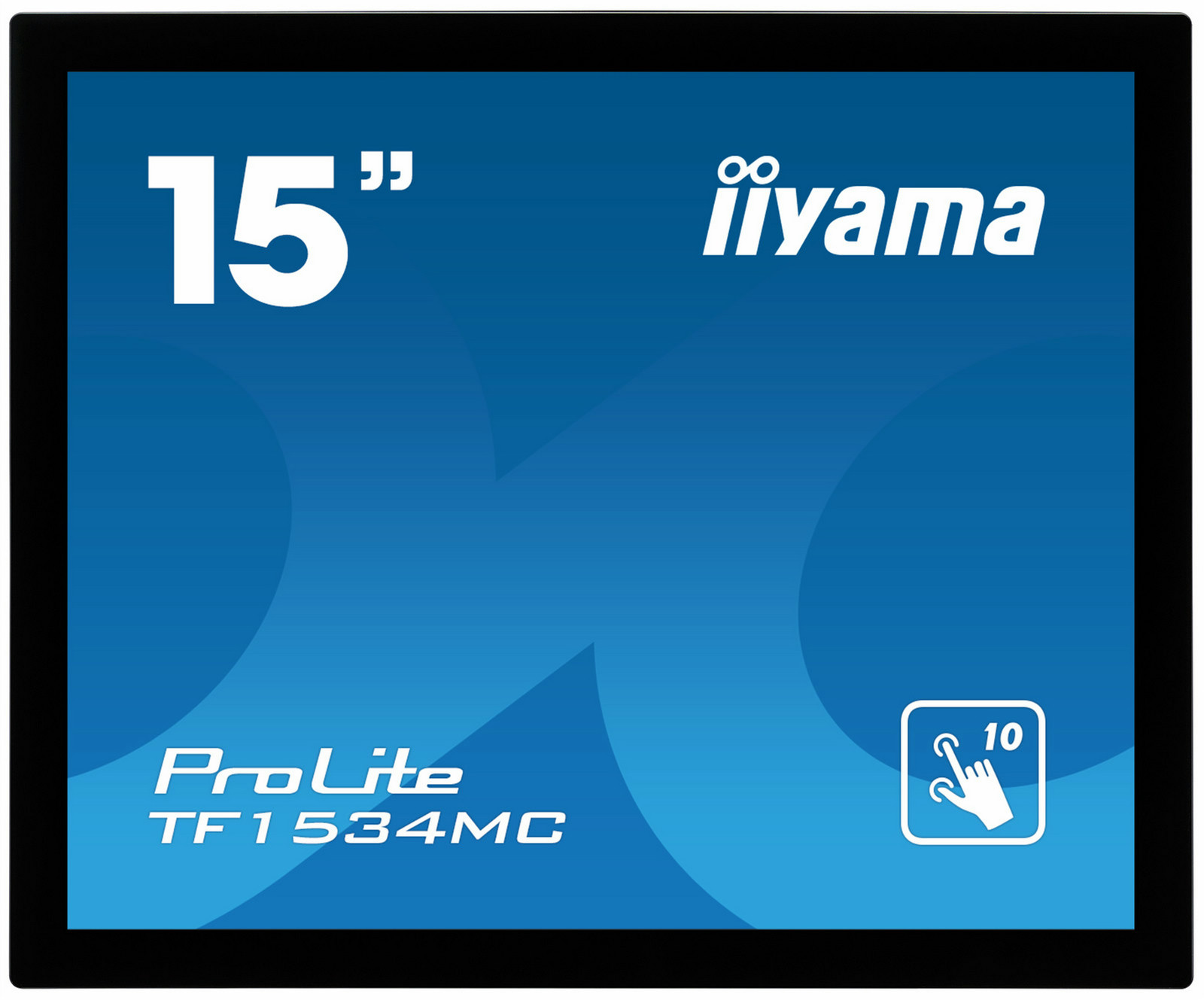

15’’ open frame 10pt touch monitor
The ProLite TF1534MC 15" multi touch screen is based on projective capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The higher brightness (350 cd/m²) ensures crispy and clear image, resulting in outstanding information transmission performance, even in bright environment. The touch function remains unaffected even if the glass is scratched. The screen is IP65 rated which means it is dust and water resistant. For ease of installation in any environment the ProLite TF1534MC comes equipped with external mounting brackets making it an ideal solution for kiosk integrators and Instore Retail.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with
OPEN FRAME
Open frame monitors are an ideal solution for kiosk integrators and Instore Retail.
IP65
The IP Code classifies how resistant a device is to foreign objects and moisture. IP65 means the monitor is completely dust tight and will resist water jets.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
LED-BACKLIT
A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.
