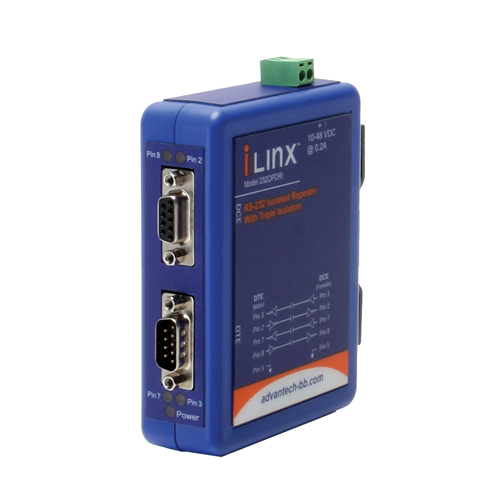

IMC Networks 232OPDRI RS-232 Blue serial converter/repeater/isolator

DB9 Male/Female, 2kV Isolation, 28-12AWG, 5.08mm Pitch, 5kg/cm Torque, LED, IP30, 32x113x123mm, 195g, Blue 232OPDRI

The 232OPDRI is our premium Industrial RS-232 Isolated Repeater. Designed for rugged industrial environments, it is UL listed and certified for use in Class 1 Division 2 locations. Powerful Optical Isolation on both data ports protects your equipment and data from damaging ground loops and surges. Additional isolation on the power supply circuits adds a third degree of protection. Packaged in a rugged plastic case, the 232OPDRI operates in wide temperature extremes. With a 35mm DIN rail mounting bracket, it is easy to integrate into a control panel or other industrial equipment. Installation and configuration is easy. Data is connected with a DB9 female connector (DCE) and a DB9 male connector (DTE). Power is connected through terminal block that accepts 10 to 48 VDC from any external source.
