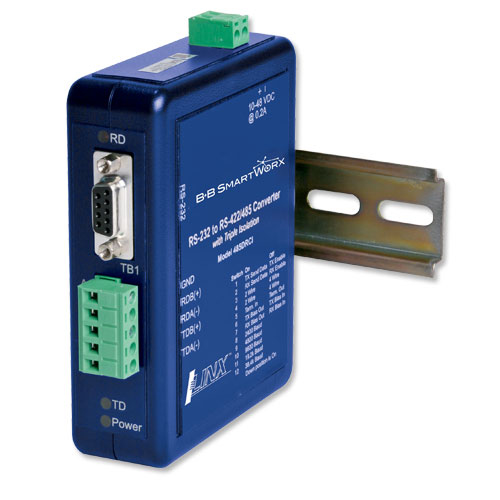

IMC Networks 485DRCI RS-232 RS-422/485 Blue serial converter/repeater/isolator

115.2 kbps, 2kV Isolation, 10-48V, 960mA, 114x124x33mm, 204.12g, Blue Industrial RS-232 to RS-422/485 Converter

Model 485DRCi industrial-grade isolated serial converter changes RS-232 signals to RS-422 for increased range, or to RS-485 for increased range plus multi-drop capability. Designed for rugged industrial use, the 485DRCi is UL approved and certified for operation in Class 1/Division 2 environments and also offers 2,000V 3-way optical isolation on input, output, and power lines. In addition to optical isolation, the unit has surge suppression on the RS-422/485 lines. This DIN rail mountable converter optically isolates and converts unbalanced, full or half-duplex, RS-232 signals to balanced RS-422/485 signals at baud rates up to 115.2 kbps. Configuration is made via a 12-position DIP switch on the bottom of the converter. Featuring Automatic Send Data Control circuitry, the converter does not require special software control of handshake signals in RS-485 mode. Removable terminal blocks for power and RS-422/485 signals make wiring easy. It is powered by a supply voltage of 10 to 48 VDC which is isolated from all data and signal ground lines. The 485DRCi may be suitable for use in Modbus and Allen-Bradley DH-485 applications.
