Data transmission
| MAC address table |
8000 entries |
| Switching capacity |
7.2 Gbit/s |
| Throughput |
10.7 Mpps |
Networking
| Broadcast storm control |
Y |
| Auto MDI/MDI-X |
Y |
| Full duplex |
Y |
| 10G support |
N |
Design
| LED indicators |
Y |
| DIN rail mounting |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 100BASE-FX, 10BASE-T |
| SFP module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
16x10/100Base-T, Auto MDI/MDI-X, 6kV ESD, 2xMini-GBIC, 12-48V, 12-24 AWG, 9W, IP30, Metal, 72.6x106.4x153.9mm, Blue

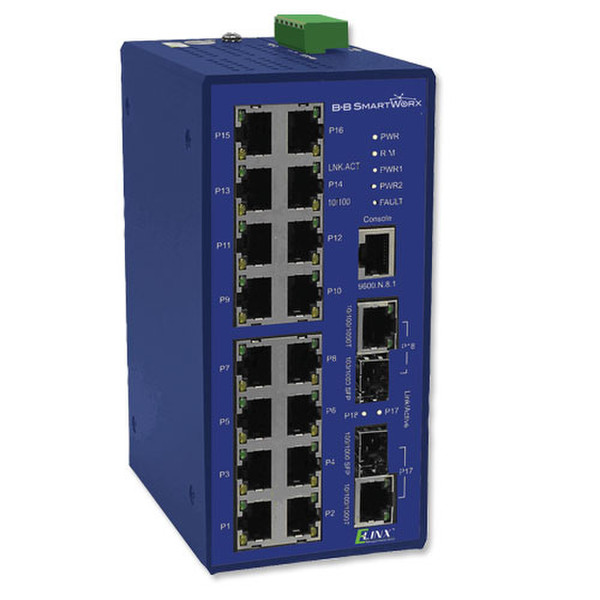

18 Port Industrial Ethernet Switch with 2 RJ-45/SFP Combo Ports for Gigabit Ethernet
The EIR418-2SFP-T is an 18 Port Unmanaged Industrial Gigabit Ethernet Switch. In addition to 16 standard copper RJ-45 ports, it has 2 CU/SFP Combo slots to accommodate Gigabit Fiber.
Small Form-factor Pluggable (SFP) Port:
The SFP Port provides flexibility when planning a network. Modules are available in multiple fiber formats. If an SFP module is not inserted, the associated combo port can be used with standard RJ-45 copper.
High-Speed Transmissions:
The EIR418-2SFP-T includes a switch controller that automatically senses transmission speed (10/100/1000 Mbps). The RJ-45 interface also auto-detects MDI or MDI-X, eliminating the requirement for a crossover cable. Each port is buffered and supports store-and-forward protocol.
Dual Power Input:
To reduce the risk of power failure, the EIR418-2SFP-T provides two 12 to 48 VDC power inputs. If the power fails, the switch will automatically use the secondary power input. Also, if the power goes out the corresponding P1 or P2 LED will go out and the Fault LED will light. The contacts for the alarm output will also open.
Flexible Mounting:
The switch features an IP30 metal enclosure that can be DIN or Panel mounted.
Transient Protection:
The power line input on the EIR418-2SFP-T offers protection from up to 3,000 V EFT. The Ethernet ports offer up to 6,000 V ESD protection. These features make the switch reliable and suitable for use in harsh electrical environments.
Wide Operating Temperature:
With an operating temperature of -40 to 75°C (-40 to 167°F), this switch is suitable for use in harsh industrial environments.
Easy Troubleshooting:
There are two LED indicators for each port that display the link status and transmission speed. Three LED indicators for power (P1, P2 and Fault) show power status. These indicators allow you to quickly diagnose and correct problems and ensure your network remains reliable.
