Operational conditions
| Storage temperature (T-T) |
-40 - 80 °C |
| Operating relative humidity (H-H) |
10 - 90% |
Design
| DIN rail mounting |
Y |
| LED indicators |
Y |
| International Protection (IP) code |
IP30 |
| Certification |
CE, FCC, RoHS, UL/cUL Class I Div 2 Groups A,B,C, and D |
Optical fiber
| Fiber optic connector |
ST |
| Wavelength |
1310 nm |
| Fiber type |
Single-mode |
| RX sensitivity |
35 dB |
| Transmission distance (max) |
20 km |
| Fiber ethernet cabling technology |
100BASE-FX |
Ports & interfaces
| Terminal block port |
Y |
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 100BASE-T, 10BASE-T |
Weight & dimensions
| Width |
30 mm |
| Height |
112 mm |
| Depth |
75.2 mm |
Networking
| 10G support |
N |
| Auto MDI/MDI-X |
Y |
| Networking standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Flow control support |
Y |
| Full duplex |
Y |
Data transmission
| MAC address table |
2000 entries |
Power
| Input voltage |
12 - 36 V |
| Power consumption (typical) |
4 W |
Performance
| Packet buffer memory |
0.064 MB |
| Mean time between failures (MTBF) |
200000 h |
Power over Ethernet (PoE)
| Power protection features |
Reverse polarity |
Additionally
| Colour of product |
Blue |
| Operating temperature range (T-T) |
-10 - 60 °C |
IEEE802.3, 802.3u, 802.3x, 64Kb Packet Buffer, 5xRJ-45, 1xST, 12-36V, 4W, 200000h MTBF, 30x75.2x112mm, Blue

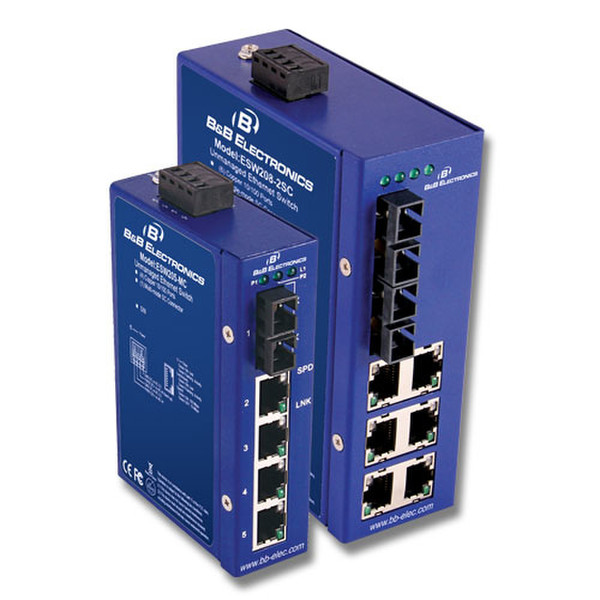

5 & 8 Port, Compact Industrial Ethernet Switches
Designed to fit many applications, the ESW205 and ESW208 series are more than just an Ethernet switch with low pricing. They are plug-andplay industrial Ethernet Switches with an compact IP30 DIN rail case, 6 way mountable panel brackets, LEDs for Power, (Link / Speed / Activity for each port), 12 to 36 VDC and 10 to 24 VAC power inputs with removable terminal blocks. These switches are perfect for any applications that require special protection from hash environments.
Choose a switch with five or eight copper ports, or a combination of copper and fiber ports. Multi-mode fiber models extend range up to 2 km. Single-mode fiber models extend range up to 20 km. All models require an external power supply (sold separately). The switch ships with 4 panel mount clips giving the user 6 different ways to panel mount the unit.
