Networking
| Cabling technology |
10Base-T, 100Base-TX |
Other features
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ah, IEEE 802.1Q, IEEE 802.1p |
Operational conditions
| Operating altitude |
0 - 3048 m |
Additionally
| Wireless technologies |
Wired |
iMcV-FiberLinX-II, TX/TX

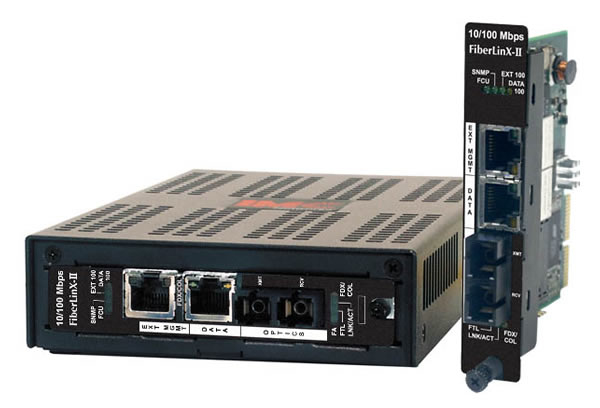

iMcV-FiberLinX-II Optical Ethernet Demarcation Unit
The iMcV-FiberLinX-II solution connects a host/remote network over fiber optics. Building on the success of the original iMcV-FiberLinX solution, the iMcV-FiberLinX-II combines media conversion with an advanced-feature set for network management and troubleshooting, including OAM (Operations, Administration and Maintenance), Extra-Tagging and EtherType control functionality. With the iMcV-FiberLinX-II, administrators can observe the end-points, and the fiber link between them, as single management entities and not as separate elements. Host management traffic is not visible to the remote or customer network nor is access to the customer network required, guaranteeing end-to-end data integrity.
iMcV-FiberLinX-II allows for remote configuration and alerts administrators to any potential problems on the long-haul fiber run, provides vital information on link condition and reports data traffic statistics. In addition, it reduces the total cost of network equipment by functioning as a copper-to-fiber media converter, allowing deployment of lower cost copper switches at both ends of the fiber connection. In addition to the iMcV-FiberLinX-II's support for Host/Remote environments, the product also has built-in support for the Unified Management Agent (UMA). With UMA, the central location can manage all devices installed in an iMediaChassis with the single IP address of the chassis.
- Supports Extra Tagging (Q-in-Q).
- Provides EtherType control.
- Preserves complete end-to-end fiber connection integrity..
- Broadcast Storm Protection
- Supports Last Gasp Trap.
- Supports the Unified Management Agent (UMA).
- Bi-directional bandwidth control.
- Supports 802.3ah OAM (Operations, Administration and Maintenance).
- Read/write IEEE 802.1Q VLAN-tags.
- QoS: IEEE 802.1p-based packet prioritization (2 queues [high/low] with 8 levels of priority).
- Layer 2 packet switching, store and forward operation.
- AutoCross for MDI/MDIX.
- Features Auto Negotiation and Selective Advertising.
- Supports Half and Full-Duplex operation.
- MTU: Supports over-sized (Jumbo) packets up to 1916 bytes per packet.
- Multiple Access Levels: User Assigned Accounts & Access Levels.
- Includes status LEDs.
