Display
| Glossy display |
Y |
| Display diagonal |
85 " |
| Aspect ratio |
16:9 |
| HD-Ready |
Y |
| Touchscreen technology |
Infrared |
| Response time |
6 ms |
| Contrast ratio (typical) |
4000:1 |
| Viewing angle, horizontal |
176 ° |
| Viewing angle, vertical |
176 ° |
| Pixel pitch |
0.46 x 0.46 mm |
| Display brightness |
400 cd/m² |
| Full HD |
Y |
| Display technology |
LCD |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes |
1080i, 1080p, 2160i, 2160p |
| Display type |
LCD |
Ports & interfaces
| Cables included |
AC, USB, VGA |
| PC Audio in |
Y |
| Audio input |
3.5 |
| Component video (YPbPr/YCbCr) in |
1 |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Ergonomics
| Placement supported |
Horizontal |
| VESA mounting |
Y |
| VESA mounting interfaces |
400 x 600 mm |
| Wall mountable |
Y |
Performance
| Network controllable |
RS232 |
| Number of speakers |
2 |
| Built-in microphone |
N |
| Number of simultaneous touchpoints |
5 |
| Connection to PC |
Y |
| RMS rated power |
7 W |
| Touch technology |
Multi-touch |
| Mac operating systems supported |
Y |
| Built-in camera |
N |
| Built-in speaker(s) |
Y |
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Weight & dimensions
| Depth |
112.1 mm |
| Weight |
101500 g |
| Width |
1186 mm |
| Height |
1988 mm |
Packaging content
| Handheld remote control |
Y |
| Quick start guide |
Y |
Operational conditions
| Storage temperature (T-T) |
32 - 104 °C |
Power
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
| Power supply type |
AC |
Packaging data
| Package depth |
311 mm |
| Package weight |
120000 g |
| Package width |
1427 mm |
| Package height |
2239 mm |
Additionally
| Colour of product |
Black |
| RS-232 port |
1 |
| Operating temperature range (T-T) |
0 - 40 °C |
215.9 cm (85 ") LCD 3840×2160, Plus, Gorilla Glass, 4000:1, 400cd/m2, IR, DisplayPort 1.2, HDMI 2.0× 2(Rear), HDMI 1.4, VGA, Component, 3.5mm line-in audio (mono), RCA stereo audio, RS-232, USB 3.0 Type-A x4, USB 3.0 Type-B, VESA 400×600mm, 101.5kg, Black

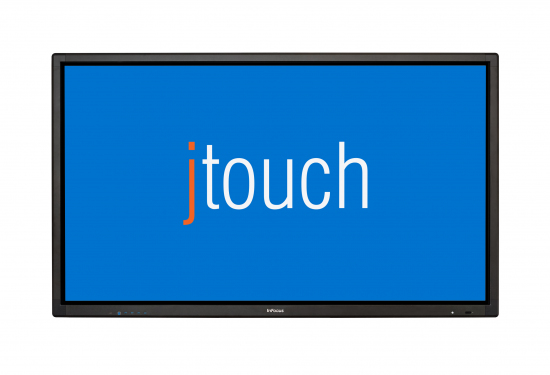

85-inch JTouch with 4K Resolution
Get your message across and connect with your audience with the incredible size, brightness, color and clarity of the 85-inch JTouch with 4K resolution.
- Your images, text and video will be seen and enjoyed even in large spaces with high ambient light
- 4K resolution means your display will be ready for all your content for years to come
- Compatible with Mac, Chromebook and Windows devices
- Anti-glare Gorilla Glass is durable and smooth to the touch
- Whiteboard and annotation capability with optional BigNote software on your PC
- Display your computer via HDMI, VGA or component video
- Enable touch from your computer via the included USB Type-A cable or go wireless with our LiteShow 4 wireless adapter
