Networking
| Maximum operating distance |
500 m |
Other features
| Form factor |
SFF |
| Operating temperature (T-T) |
32 - 131 °F |
| Networking features |
Gigabit Ethernet |
Protocols
| Supported network protocols |
SCSI-FCP, FC-IP, FC-SB-2, FCP-2 |
Bandwidth
| Supported data transfer rates |
2.125/1.0625 Gb/s |
Ports & interfaces
| Host interface |
PCI-E |
| Internal |
Y |
Additionally
| Transfer rate (Mbps) |
4250 Mbit/s |
| Wireless technologies |
Wired |

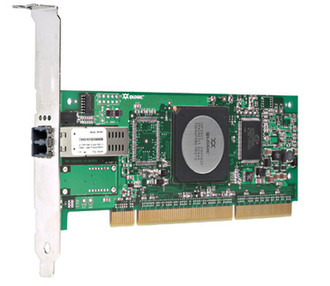

QLogic QLE2460, HBA SFF, MM , 4Gb/s, PCIe x4, LC (1.25mm), 50/125µm, 500m, 150000 IOPS
<b>Single-port host bus adapter (HBA)</b>
The Qlogic QLE2460 HBA is a single-ported host bus adapter created for enterprise customers and engineered to support the most stringent storage networking requirements, regardless of bus interface.
It is capable of delivering outstanding performance by leveraging a single ASIC design and combining a unique hardware architecture to offer up to 150,000 IOPs per port and 750MB throughput in full duplex while supporting a native x4 PCI Express.
