Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000 Mbps |
| Maximum data transfer rate |
1 Gbit/s |
Networking
| Port mirroring |
Y |
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| 10G support |
N |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
Performance
| Packet buffer memory |
0.48 MB |
Management features
| Quality of Service (QoS) support |
Y |
| Multicast support |
Y |
| Web-based management |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

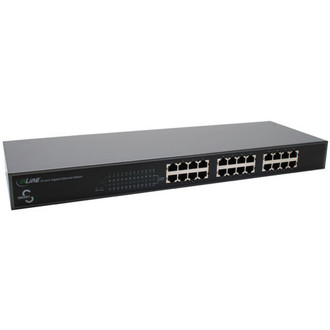

Web Smart Gigabit-Switch 24-Port, 48.26 cm (19 ") , Metall
- Supports 24 10/100/1000Mbps Gigabit switching ports
- Supports 10/100Mbps Half/Full duplex and 1000Mbps Full duplex, flow control and auto-negotiation
- Supports IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode
- Supports automatic address learning and address aging
- Supports Store-and-Forward architecture
- Supports auto MDI/MDI-X function
- Supports up to 9KB Jumbo Frame
- Supports up to 8K MAC Address Table
- Provides 480KB Buffer Memory
- Remote Web management interface
- RS-232 port command line interface
- Supports System log, view trap, IP setting through Web management utility, firmware upgrade
- Supports Port-based VLAN, Tag-based VLAN, Trunk, Port Mirroring, QoS
- Supports SNMP, LACP, RTSP, IGMP Snooping.
- Supports Port-based Rate Limit control.
- Supports 802.1X
- Supports Storm Control (ICMP, Broadcast, Multicast, Flooded unicast)
- Supports backup and restore current configuration
- Data Transfer Rates: 10Mbps, 100Mbps and 1000Mbps
- Protocol: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Full Duplex Flow Control
- MAC Address Table: 8K
- Packet Buffer Memory: On chip 480KB Buffer Memory per device
- Switch Fabric: 46Gbps Forwarding Capacity
- Transmission Method: Store-and-Forward
- Connector: RJ-45 x 24
- Max Power Consumption: 29W
- Dimensions (app.): 440mm (length) x 141mm (width) x 44mm (height)
- Net Weight (app.): 1600 g
- Power Supply: AC 100~240V 50/60Hz Internal Universal Power
- Operating Temperature: 0°C ~ 40°C ambient
- Humidity: 5 % ~ 95 % (non-condensing)
- Storage Temperature: 0°C ~ 70°C
