Bandwidth
| Supported data transfer rates |
54, 48, 36, 24, 18, 12, 9, 6 Mbps |
Protocols
| Media access protocol |
CSMA/CA |
Other features
| Link/Act LED |
Y |
| Outdoor range |
300 m |
| Compliance industry standards |
IEEE 802.11b, 802.11g |
Ports & interfaces
| Host interface |
PCI |
| Internal |
Y |
| Interface |
WLAN |
Networking
| Chipset |
RTL8185L |
| Frequency band |
2.412 - 2.484 GHz |
Additionally
| Indoors max range |
100 m |
| Transfer rate (Mbps) |
54 Mbit/s |
| Wireless technologies |
Wireless |

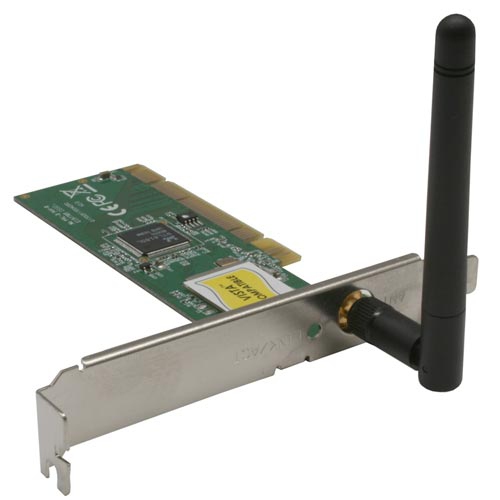

IEEE 802.11g Wireless LAN PCI Adapter 54Mbps
- Realtek Chip, RTL8185L
- Compatible with IEEE 802.11g standard and maximum data transfer rate up to 54Mbps
- Dynamic date rate scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for 802.11g
- Dynamic date rate scaling at 11, 5.5, 2 and 1Mbps for 802.11b
- Maximum reliability, throughput and connectivity with automatic data rate switching
- Supports 64/128-bit WEP Data Encryption, WPA and WPA2 security
- Supports both Infrastructure and Ad-Hoc Networking Modes
- Simple user setup & diagnostics utilities
- Data Transfer Rates: 11Mbps (11b mode), 54Mbps (11g mode)
- Standard: IEEE 802.11g, backward compatible with IEEE 802.11b
- Operating Radius: Indoor: 100m (max.), Outdoor: 300m (max.)
- Radio Technology: IEEE 802.11g Orthogonal Frequency Division Multiplexing (OFDM), IEEE 802.11b Direct Sequence Spread Spectrum (DSSS)
- Interface: 32-bit PCI v2.2
- Operating Frequency / Channel: 2.412~2.462GHz (FCC, US/Canada) / 11 Channels, 2.412~2.472GHz (ETSI, Europe) / 13 Channels 2.412~2.484GHz (TELEC, Japan) / 14 Channels
- Modulation Schemes: DBPSK/DQPSK/CCK/OFDM
- Roaming: Full mobility and seamless roaming from cell to cell
- Antenna: External Detachable Antenna
- Media Access Protocol: CSMA/CA with ACK
- LED Indicators: Link/ACT
- Operating Frequency / Channel: 2.412~2.462GHz (FCC, US/Canada) / 11 Channels 2.412~2.472GHz (ETSI, Europe) / 13 Channels 2.412~2.484GHz (TELEC, Japan) / 14 Channels
