Ports & interfaces
Audio connections |
Y |
Number of microphone inputs |
3 |
Headphone outputs |
3 |
DC-in jack |
Y |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
VGA (D-Sub) ports quantity |
3 |
Mouse port type |
USB |
Keyboard port type |
USB |
Number of computers controlled |
2 |
Video port type |
VGA |
VGA, USB 3.0 Hub, 2x 3.5 mm, 2048 x 1536

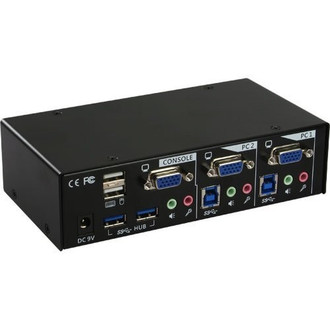

This VGA USB KVM Switch allows user to access, control, boot and reboot two VGA and USB 3.0 enabled computers using only one set of keyboard, mouse, and monitor display. It features the latest Smart Touch button for quick switch and two USB 3.0 device ports for fast data transfer between KVM and USB devices. Comparing to previous USB 2.0, USB 3.0 is 10 times faster in transfer rate, which can satisfy modern data transfer with rich media and large digital files. With VGA video interface, thsi switch can support high resolution up to 2048 x 1536 (analog). Besides, it supports TTU (True Transparent USB) Emulation Technology and Active Sync Replication (A.S.R.) technology. The former is capable of a complete versatility in dealing with the functional requirements of all types of advanced keyboards and mice. The later can ensure ultimate video compatibility requirements on recent operating systems, such as Windows 7 and Mac OS X. A.S.R. enables KVM switch to have all-time DDC emulation so that the video compatibility will be as constant and stable as it should be, no matter how you switch. This all-time DDC emulation can get rid of those problems that are related to the absence of appropriate DDC data on the KVM switch when port switching is taken place. This KVM series is designed to fulfill high profile users. Applications can range from high profile video game players, multi-platform programmers, to intense design companies.
- Resolution support for Analog Display: 2048 x 1536
- 2 x USB 3.0 device hub ports for high-speed USB device sharing
- Two channel stereo sound for theater audio experience
- True Transparent USB emulation technology for all types of keyboards and mice
- Active Sync Replication for all time DDC emulation
- Smart-touch for quick switch

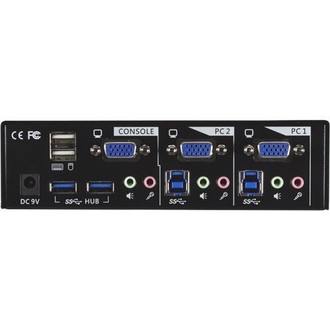

- Number of Ports: 2
- Number of Console: 1
- Console Keyboard Connector: USB Type A Female
- Console Mouse Connector: USB Type A Female
- Console Video Connector: VGA HDB15 Female
- Console Audio/Mic Connector: 2x 3.5 mm Audio/Mic Jack Female
- Console USB Hub Ports: 2x USB 3.0 Type A Female
- PC Keyboard Connector: USB Type B Female
- PC Mouse Connector via PC Keyboard Connector
- PC Video Connector: VGA HDB15 Female
- PC Audio/Mic Connector: 3.5 mm Audio / Mic Jack Male
- PC selection: Smart Touch / Hotkey
- Analog Display Resolution: 2048 x 1536
- Keyboard & Mouse Emulation: Yes (TTU)
- Auto Scan Delay Time: 5 ~ 100 sec
- Operation Temperature: 0 ~ 40 °C, Storage Temperature: -20 ~ 60 °C, Humidity: 0 ~ 90 % RH, Non-Condensing
- Power type: 2.1mm Power Jack, Power Adapter: DC 9V/2A
