Performance
| DirectX version |
11.2 |
| OpenGL version |
4.3 |
| HDCP |
Y |
| Full HD |
Y |
| TV tuner integrated |
N |
| PhysX |
Y |
| NVIDIA 3D Vision |
Y |
| Fill rate |
136.7 billion texels/sec |
Ports & interfaces
| Interface type |
PCI Express 3.0 |
| HDMI ports quantity |
1 |
Memory
| Graphics adapter memory type |
GDDR5 |
| Memory bus |
256 bit |
| Discrete graphics adapter memory |
2 GB |
| Memory clock speed |
7000 MHz |
| Memory bandwidth (max) |
224 GB/s |
Processor
| Graphics processor family |
NVIDIA |
| Processor frequency |
1071 MHz |
| FireStream |
N |
| Processor boost clock speed |
1111 MHz |
| Maximum displays per videocard |
4 |
| Maximum digital resolution |
2560 x 1600 pixels |
| CUDA |
Y |
Design
| Cooling type |
Active |
| Number of slots |
2 |
Power
| Minimum system power supply |
550 W |
| Supplementary power connectors |
1x 6-pin, 1x 8-pin |
Additionally
| Dual-link DVI |
Y |
| Graphics controller |
GeForce GTX 770 |
| Mini DisplayPort quantity |
1 |

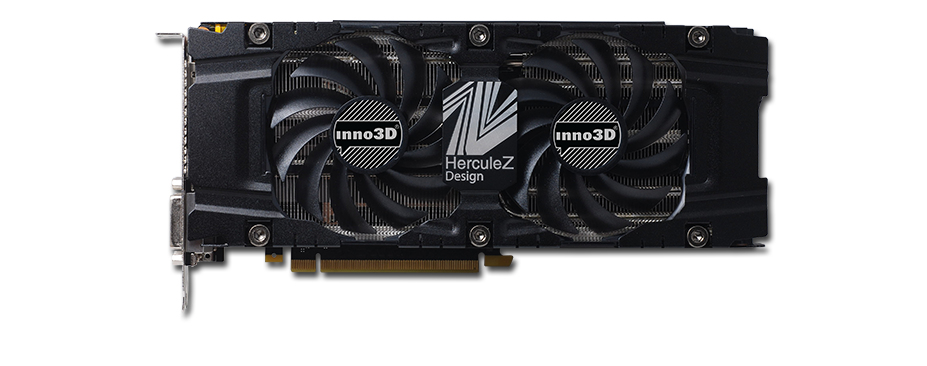

GeForce GTX 770 HerculeZ 2000, 1111MHz, 2GB, 7000MHz GDDR5, 256-bit, PCI-Express 3.0, HDMI
<b>Inno3D® is thrilled to announce the launch of the eagerly awaited Inno3D® GeForce® GTX 770 HerculeZ 2000.</b>
Fast just got faster with the next-generation GeForce GTX 770, a high-performance graphics card designed from the ground up to deliver high-speed, super-smooth gaming.
GTX 770 offers all the 700-family performance features. Plus, it’s stacked with unique gaming technologies that make it really fast and deliver a smooth, quiet, easy-to-optimize gaming experience.
- 7 Gbps memory—the fastest ever on a GPU
- Massively powerful NVIDIA Kepler GPU
- NVIDIA SHIELD™ gaming portable-ready
The next-generation GeForce® GTX 770 is a high-performance graphics card designed from the ground up to deliver high-speed, super-smooth gaming.
It’s stacked with unique gaming technologies that make it fast. Really fast. GTX 770 features a massively powerful NVIDIA® Kepler™ GPU. Plus, it comes with 7 Gbps memory—the fastest ever on a GPU and NVIDIA GPU Boost 2.0 technology, giving you the performance capabilities you need to game at extreme settings.
The GTX 770 also taps into the industry’s most advanced gaming features like GeForce Experience™ for one-click driver and settings optimization, plus NVIDIA PhysX® and TXAA™ for smooth, sharp graphics. So nothing will hold you back from taking on—and dominating—your most challenging games.
<b>GeForce® GTX 700 Series</b>
The GTX 700 Series is the latest generation of breakthrough NVIDIA® Kepler™-powered GPUs, launching May, 2013. The family is built for performance—fast, smooth, whisper-quiet and loaded with advanced game-ready capabilities like GeForce Experience™. This means deeper, richer, and more immersive gaming than you can get anywhere else. All cards in the 700-Series platform (GTX 780, 770, and 760 GPUs) will offer a truly impressive PC gaming experience.
<b>Performance:</b>
The 700 Series improves on past generations to deliver significantly improved performance with settings cranked up in all your favorite PC games.
- Next-generation NVIDIA Kepler-architecture-based GPU
- RPM-balancing filters for stable fan speeds and whisper-quiet acoustics
- Advanced thermal and low-power operation for a cooler-running PC
- NVIDIA GPU Boost 2.0: advanced controls that let you push your PC’s performance to the max; intelligently adjust settings like temp target, overvoltage, display OC, and FPS target
- SLI: Flexibility to link up to three cards for more powerful performance
<b>Game-Ready Capability:</b>
Revolutionary GeForce Experience software ensures the best gaming, right out of the box.
Automated game settings based on your individual PC with a single click
Game-ready drivers to maximize gameplay the day a PC title releases
<b>Innovation:</b>
A collection of innovative NVIDIA technologies provides an immersive experience that looks, sounds, and feels polished for gaming.
- NVIDIA PhysX® for more realistic characters and environments
- NVIDIA TXAA™ for crisper gaming and images
- Smooth performance that brings every game to life
