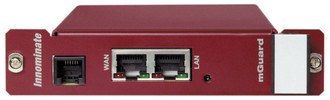

Innominate mGuard blade/533 99Mbit/s hardware firewall

mGuard blade/533, Intel IXP 42x 533 MHz, 64 MB SDRAM, 1 LAN, 1 WAN, Fast Ethernet, PPPoE, PPTP, DHCP, DNS, 200 g mGuard bladepack

The unique security solution for rack installation
The mGuard bladePack by Innominate is at home in any IT environment, for its compatibility is unparalleled. Regardless of which server system you use, regardless of which operating system you work with, with this unique solution, you can guarantee the highest security standards. Uniformly and around the clock. In every industrial environment – from automotive to pharmaceutical – in medical technology areas, at remote maintenance applications and also in your industry.
The mGuard blades enable you to assign each of your critical server systems its own security components – with individual levels of security and specifically configured access rights, not to mention numerous other unique advantages.

Maximum availability, minimum time and effort
The mGuard bladePack consists of the mGuard bladeBase (which can be integrated effortlessly into every 19-inch standard 3 U rack system) and up to 12 mGuard blades. In order to guarantee the highest possible level of availability, the mGuard bladeBase is standard-equipped with a redundant power supply, which is controlled by a monitoring unit. In the case of a problem, alerts are immediately transmitted via SNMP traps to the administrator. Additionally, every integrated mGuard blade is identified and monitored.
Up to 12 mGuard blades can be used with each mGuard bladeBase, allowing up to 12 individual server systems to be individually protected. By combining two mGuard blades into a hot standby system, you guarantee maximum protection and availability for up to six server systems. In this case, the mGuard blades monitor one another reciprocally. In the case of error, the twin mGuard blade takes over the complete range of functions (optional mGuard Redundant Firewall Option).

At a glance
- "plug-n-protect" system: independent of the hardware platform and operating system used Redundant Firewall for high system availability (optional).
- Redundant power supply, monitoring unit and hot standby mode for maximum security and availability.
- Independent reconfiguration of the standby system when blades are exchanged.
- Maximum data throughput using hardware-based encryption for high speed VPN/firewall (optional).
- Virtual addressing (1:1 NAT) in the VPN tunnel avoids address conflicts.
- User firewall regulates access to internal or external resources via user login to the mGuard and central RADIUS server.
- Configuration with the Innominate Device Manager (IDM).
- Hot swapping allows replacement during operation.
